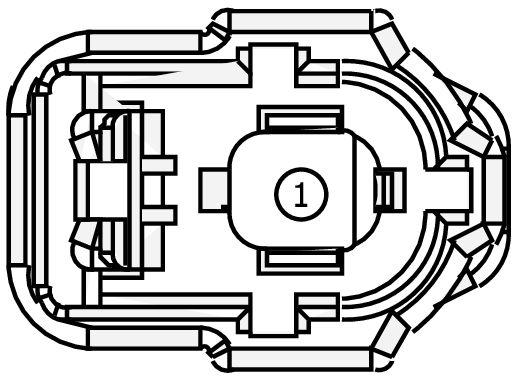

Connector End View C103 - ENGINE OIL PRESSURE (EOP) SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C103 | ENGINE OIL PRESSURE (EOP) SWITCH | 12C508 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 98AG-14474-AA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CMC24 (GY) | 18 | SWITCH - OIL PRESSURE | 98AG-14474-AA | ||||
