Parking Brake Cable Adjustment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Adjustment

1. Courtesy of FORD MOTOR COMPANY

2. Courtesy of FORD MOTOR COMPANY

3. Refer to: Jacking and Lifting - Overview .

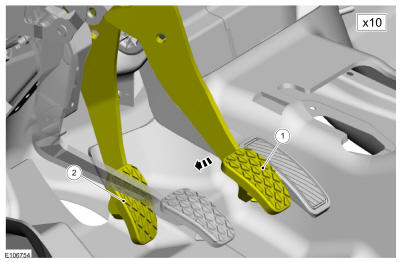

4. Courtesy of FORD MOTOR COMPANY

5. Torque: 71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

6. Torque: 71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

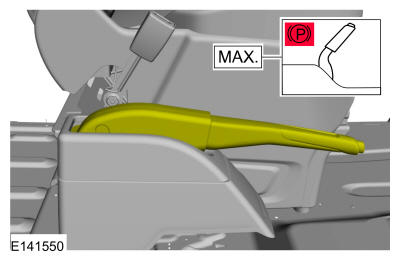

7. Courtesy of FORD MOTOR COMPANY

8. Courtesy of FORD MOTOR COMPANY

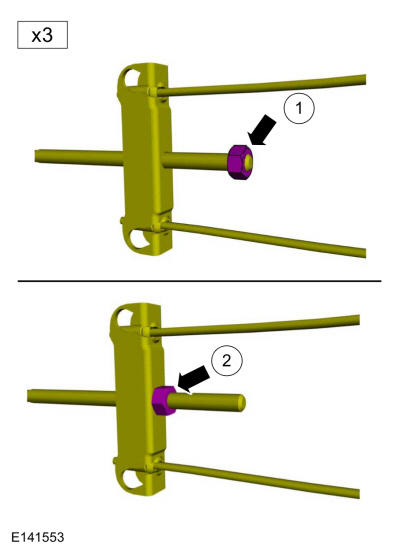

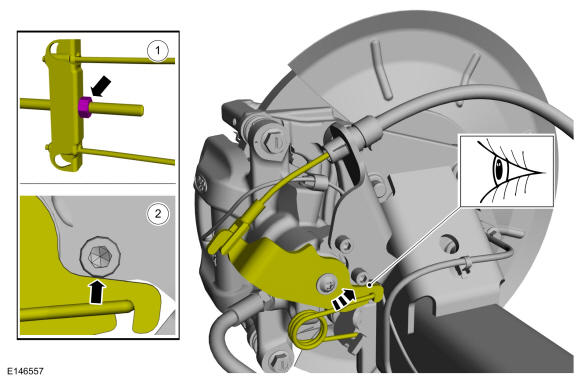

9. 1. Loosen the parking brake cable adjustment nut until the brake caliper levers contact the brake caliper abutment on both sides.
   NOTE: This step requires the aid of another technician.

   Courtesy of FORD MOTOR COMPANY

NOTE: This step requires the aid of another technician.

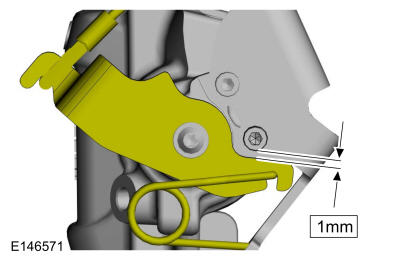

10. 1. Insert a 1.0 mm feeler gauge between the parking brake lever and the brake caliper abutment on both sides. Use the General Equipment: Feeler Gauge
    2. With the aid of another technician, tighten the parking brake cable adjustment nut until movement is observed on one of parking brake levers.
    3. Remove the equipment.
    4. Tighten the parking brake cable adjustment nut two complete turns.
    5. Install the parking brake cable adjustment nut lock nut.

    Courtesy of FORD MOTOR COMPANY

11. Torque: 133 lb.in (15 Nm)

    Courtesy of FORD MOTOR COMPANY
