Brake System Bleeding

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Fluid Container

NOTE: Make sure that the vehicle is standing on a level surface.

Refer to: Brake and Clutch Systems Health and Safety Precautions .
Vehicles with stability assist
Bleed the brake system using the BleedMASTER function in the diagnostic tool.
Vehicles without stability assist

Courtesy of FORD MOTOR COMPANY
NOTE: The brake fluid reservoir must remain full with new, clean brake fluid at all times during bleeding.

Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the pressure within the brake system does not exceed 1 bar.

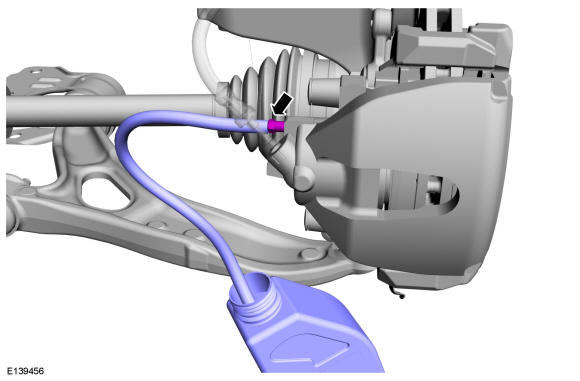

Use the General Equipment: Fluid Container

Courtesy of FORD MOTOR COMPANY

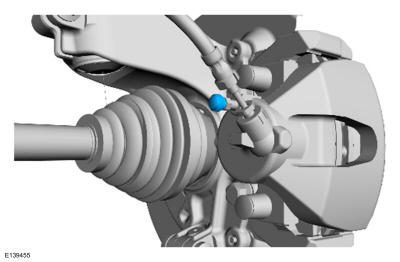

Loosen: 180°

Courtesy of FORD MOTOR COMPANY

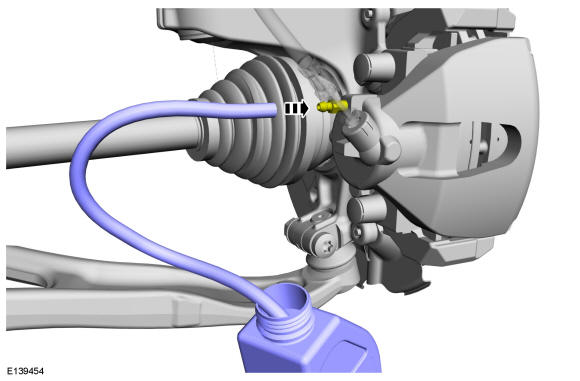

Operate the brake pedal fully (pumping brake fluid and air into the bleed jar) and allow the brake pedal to return to the rest position.
Continue operating the brake pedal until air-free fluid is being pumped into the bleed jar.
Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
With the brake pedal fully depressed tighten the bleed nipple.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Repeat the procedure for the remaining brake lines.
Courtesy of FORD MOTOR COMPANY
