Hood Alignment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

1. Check hood to body dimensions. Refer to: Body and Frame .

   All alignments

2. Remove the hood latch. Refer to: Hood Latch .

   Hood fore and aft, left and right alignments

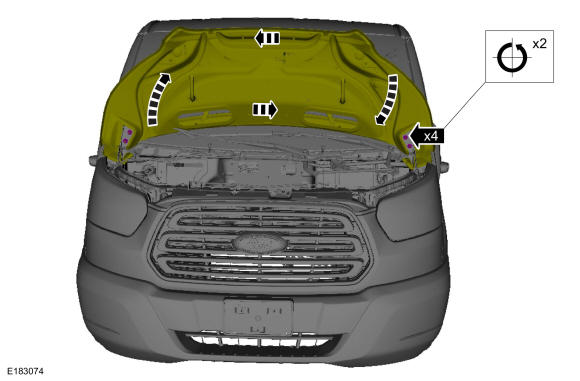

3. Loosen the bolts enough to permit movement of the hood and adjust to specification. Refer to: Body and Frame .

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

   Hood front up and down alignments

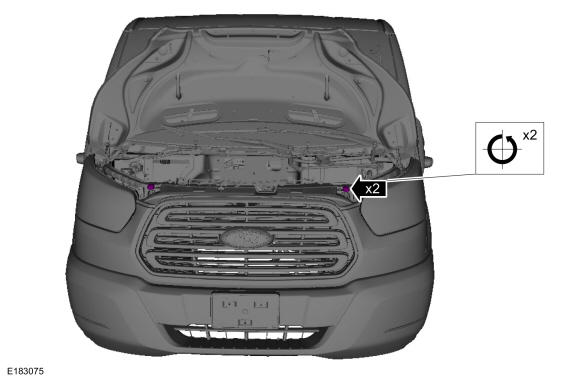

4. Loosen the bump stop rubbers.

   Courtesy of FORD MOTOR COMPANY

5. Remove the hood latch. Refer to: Hood Latch .

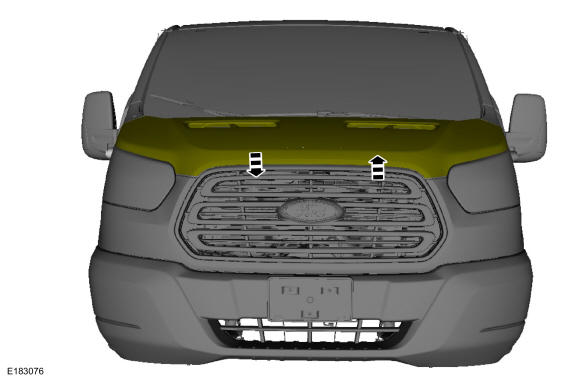

6. Adjust the hood to specification. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

   All alignments

7. Check the body to hood dimensions. Refer to: Body and Frame .
8. Install the removed components.
