Information and Entertainment System - Component Location
NOTE:
The available speaker configurations are shown first. The remaining hidden components and various cable routings follow the speaker configurations.
NOTE:
Some vehicles may not be equipped with all the optional components shown.
NOTE:
Low/mid level roof heights shown, others are similar.
NOTE:
Left-hand drive shown, right-hand drive is similar.

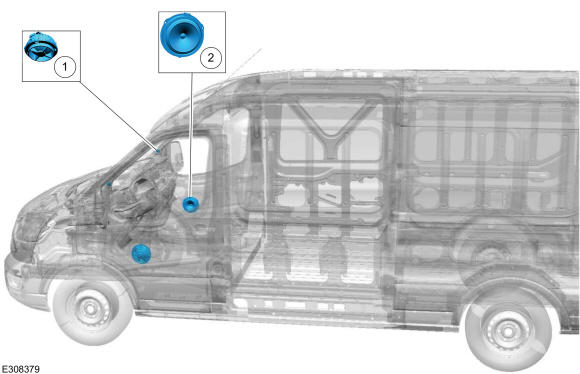

Audio System - 4 Speaker System
| Item | Description |
|---|---|
| 1 | Left/right A-pillar tweeter speakers |
| 2 | Left/right front door speakers |

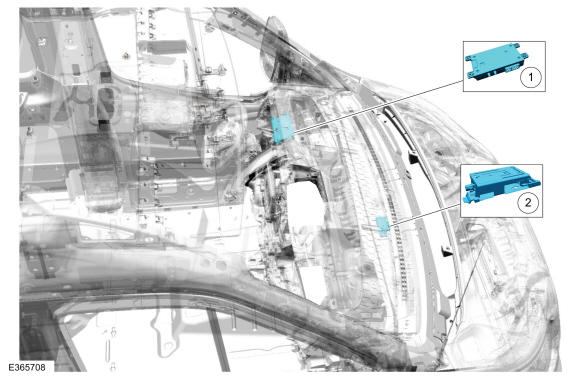

Hidden Components
| Item | Description |
|---|---|
| 1 | TCU |
| 2 | Secondary cellular (TCU) antenna |

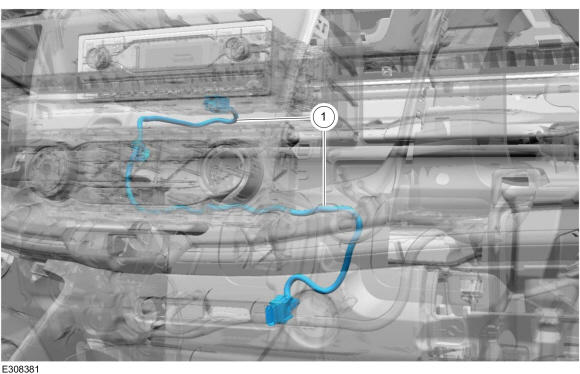

USB Cable Routing
| Item | Description |
|---|---|
| 1 | USB cable |

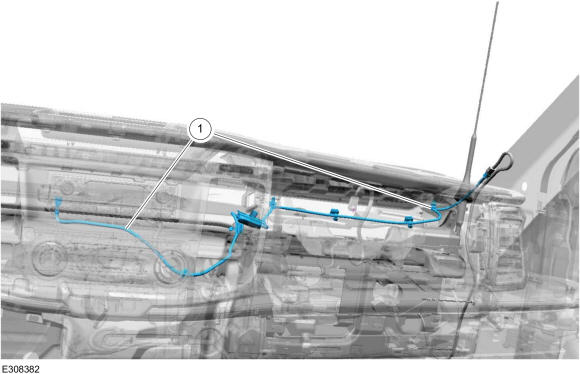

AM/ FM1 Antenna Cable Routing - Fender Mounted Antenna
| Item | Description |
|---|---|
| 1 | Lower AM/ FM1 antenna cable |

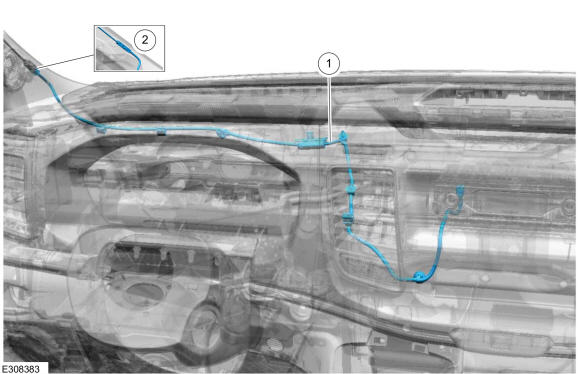

Lower AM/ FM1 Antenna Cable Routing - Roof Mounted Antenna
| Item | Description |
|---|---|
| 1 | Lower AM/ FM1 antenna cable |
| 2 | AM/ FM1 antenna cable in-line connection |

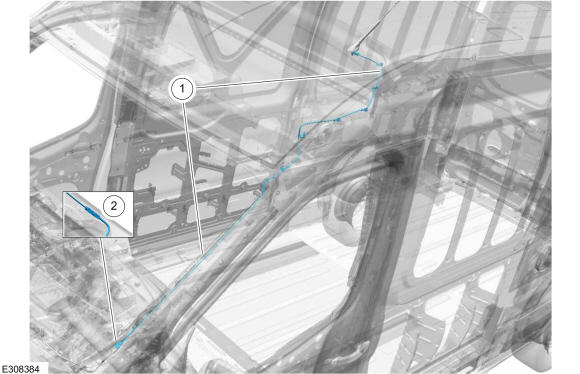

Upper AM/ FM1 Antenna Cable Routing - Roof Mounted Antenna
| Item | Description |
|---|---|
| 1 | Upper AM/ FM1 antenna cable |
| 2 | AM/ FM1 antenna cable in-line connection |

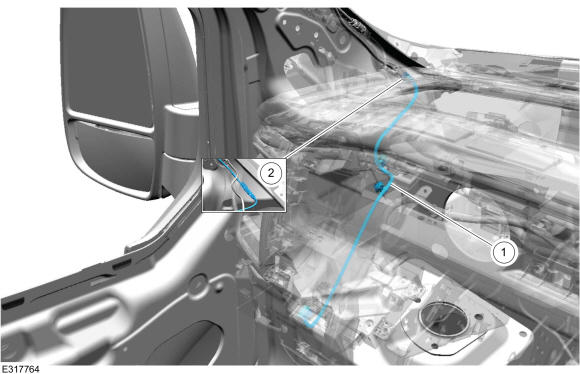

Lower Primary Cellular Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Lower primary cellular antenna cable |
| 2 | Lower primary cellular antenna cable in-line connection |

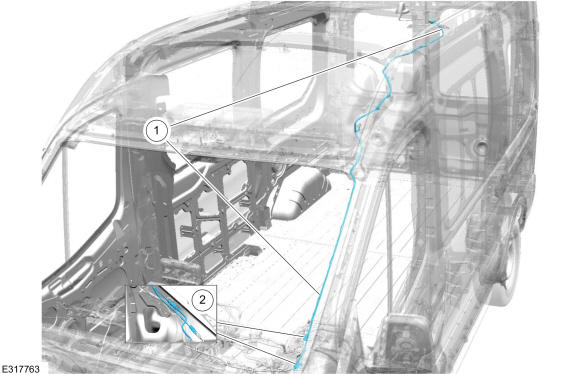

Upper Primary Cellular Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Upper primary cellular antenna cable |
| 2 | Primary cellular antenna cable in-line connections |

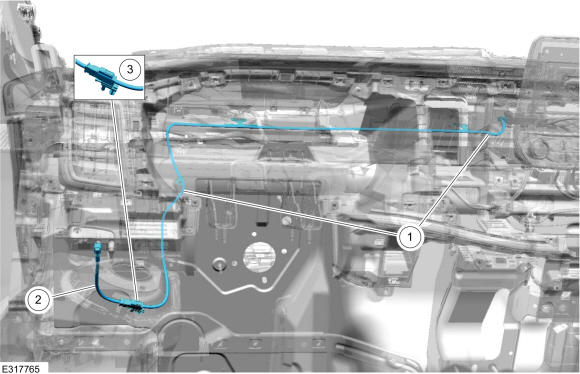

Secondary Cellular (TCU) Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Secondary cellular (TCU) antenna cable |
| 2 | Secondary cellular (TCU) antenna jumper cable |
| 3 | Secondary cellular (TCU) antenna cable in-line connection |
