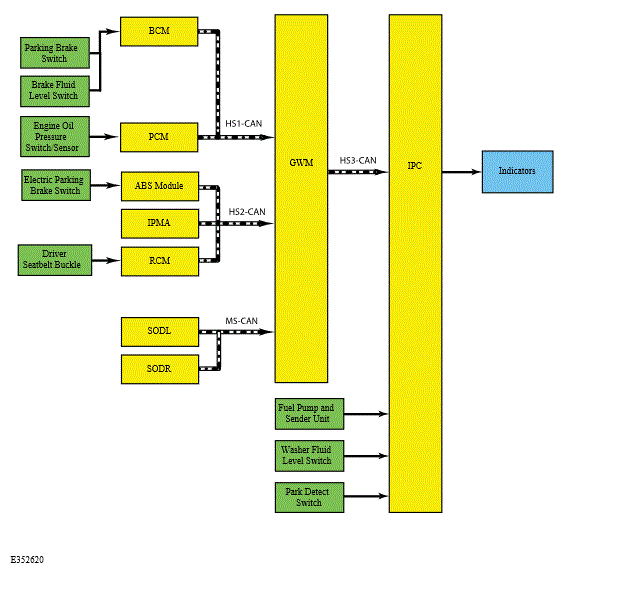

System Diagram - Indicators

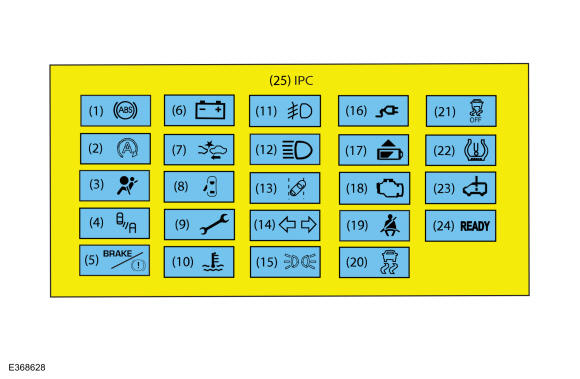

Indicators
| Item | Description |
|---|---|
| 1 | ABS |
| 2 | Auto stop-start - not used on BEV |
| 3 | Airbag warning |
| 4 | BLIS |
| 5 | Brake warning |
| 6 | 12V battery / charge indicators |
| 7 | Forward collision warning |
| 8 | Door ajar |
| 9 | Powertrain malfunction (wrench) |
| 10 | Engine over-temperature |
| 11 | Front fog lamp |
| 12 | High beam |
| 13 | Lane departure 'off' |
| 14 | LH/ RH turn indicator |
| 15 | Light on |
| 16 | HV Battery Extension Chord is Connected |
| 17 | HV low battery State of Charge indicator |
| 18 | MIL |
| 19 | Seatbelt warning |
| 20 | Stability-traction control (sliding car) |
| 21 | Stability-traction control disabled (sliding car off) |
| 22 | TPMS |
| 23 | Electrical Malfunction |
| 24 | READY to Drive indicator |
