Instrument Panel Cluster (IPC) - Electric - Overview: Overview
The IPC uses gauges, warning and informational indicators, RTT indicators and chimes to alert the driver of vehicle conditions and system operation. The message center provides menu selections to configure various vehicle features. For a complete list and description of the features the message center controls, refer to the Owner's Literature.
The IPC provides a single display screen that contains the message center and RTT indicators.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
RTT indicators illuminate in the message center and replace traditional informational or warning indicators, using the same iconic representation.

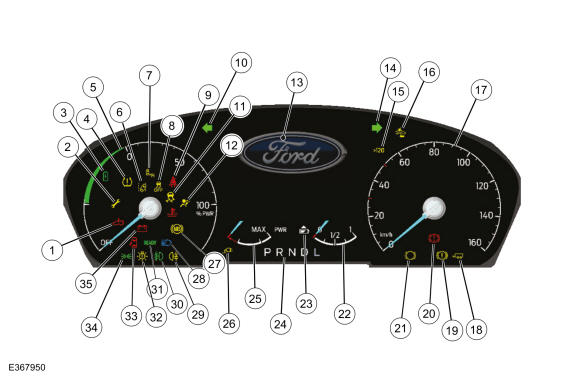

IPC
| Item | Description |
|---|---|
| 1 | Electrical malfunction |
| 2 | Powertrain malfunction (wrench) indicator |
| 3 | Battery charging |
| 4 | TPMS warning indicator |
| 5 | Power Gauge |
| 6 | Lane keeping assist 'off' indicator |
| 7 | BLIS/ CTA malfunction indicator |
| 8 | Traction control disabled indicator (sliding car OFF icon) |
| 9 | Seatbelt indicator |
| 10 | LH turn indicator |
| 11 | Stability-traction control indicator (sliding car icon) |
| 12 | Airbag |
| 13 | Message center display |
| 14 | RH turn indicator |
| 15 | Overspeed warning |
| 16 | Forward collision warning malfunction / off indicator |
| 17 | Speedometer |
| 18 | Towbar/Haul |
| 19 | Electric parking brake warning indicator |
| 20 | Brake failure |
| 21 | Brake pad warning |
| 22 | HV Battery charge gauge |
| 23 | HV Battery State of charge |
| 24 | PRNDL display |
| 25 | Power availability gauge |
| 26 | HV Battery extension chord is connected |
| 27 | ABS indicator MIL |
| 28 | High beam indicator |
| 29 | Rear fog lamps indicator |
| 30 | Front fog lamps indicator |
| 31 | Ready indicator |
| 32 | Master lighting switch |
| 33 | Door ajar indicator |
| 34 | Lights on indicator |
| 35 | Battery indicator |
