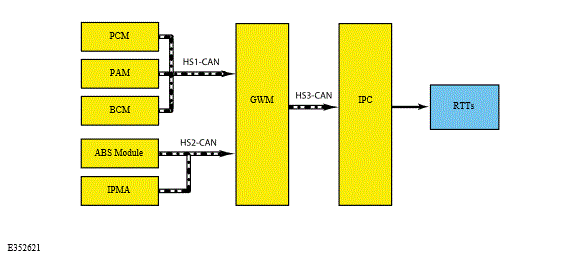

System Diagram - Reconfigurable Telltales (RTTs)
 Courtesy of FORD MOTOR COMPANY
|

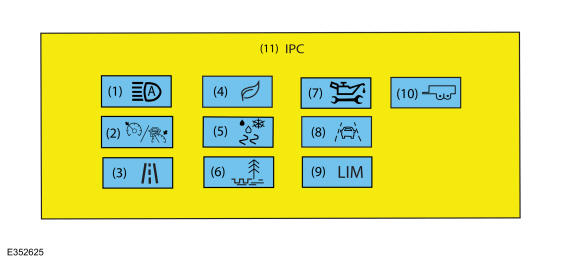

Reconfigurable Telltales (RTTs)
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Auto high beam |
| 2 |
Cruise control/adaptive cruise control |
| 3 |
Drive mode - normal |
| 4 |
Drive mode - eco |
| 5 |
Drive mode - slippery |
| 6 |
Drive mode - mud/ruts |
| 7 |
Engine oil change required |
| 8 |
Lane keep assist |
| 9 |
Speed limiter |
| 10 |
Tow/haul |
| 11 |
IPC |
