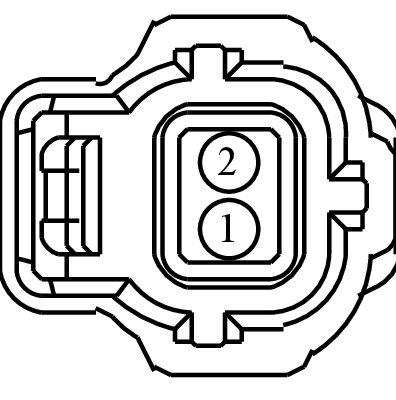

Connector End View C1793 - EXHAUST GAS RECIRCULATION (EGR) COOLER BYPASS VALVE SOLENOID

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1793	EXHAUST GAS RECIRCULATION (EGR) COOLER BYPASS VALVE SOLENOID	BK	12B637	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB07 (GN-BU)	16	FUSE - 7 OR CIRCUIT BREAKER	N/A
2	CE465 (YE-GN)	18	CTRL MOD. - POWERTRAIN # VACUUM SOLENOID VALVE (VSV) +	N/A

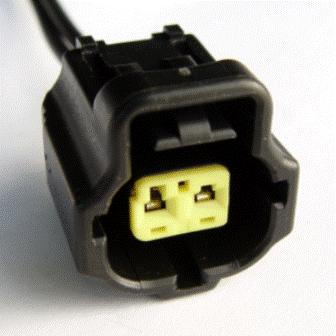

Available Pigtail Kits

Pigtail Kit Part Number WPT-357

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-HVA

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Fuel Pump/Sending Unit
• Motor - Idle Air Control
• Motor - Rear Window Washer Fluid Pump
• Motor - Windshield Washer Fluid Pump
• Sensor - Coolant Temperature
• Sensor - Washer Fluid level
