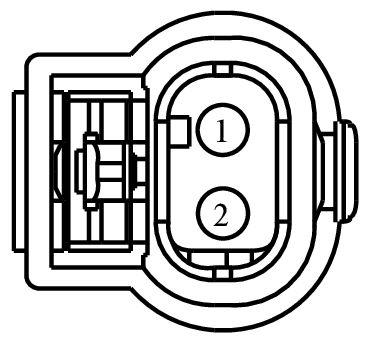

Connector End View C1508 - VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 2 (VCT22)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1508	VARIABLE CAMSHAFT TIMING BANK 2 SOLENOID 2 (VCT22)	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-ACA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	9U5T-14474-ACA
2	CE443 (BN-VT)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4	9U5T-14474-ACA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1251

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-DA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Solenoid - Engine Variable Timing
