Parking Brake Shoes - 5 Ton Vehicle, Vehicles With: Drum-in-Hat: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake disc. Refer to: Brake Disc - 5 Ton Vehicle, Vehicles With: Drum-in-Hat .
2. Remove the return springs.

   Courtesy of FORD MOTOR COMPANY

3. On both sides.

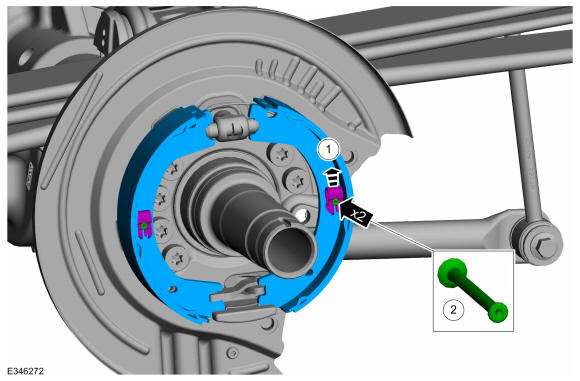

   1. Remove the hold down springs.
   2. Remove the pins and the parking brake shoes.

   Courtesy of FORD MOTOR COMPANY

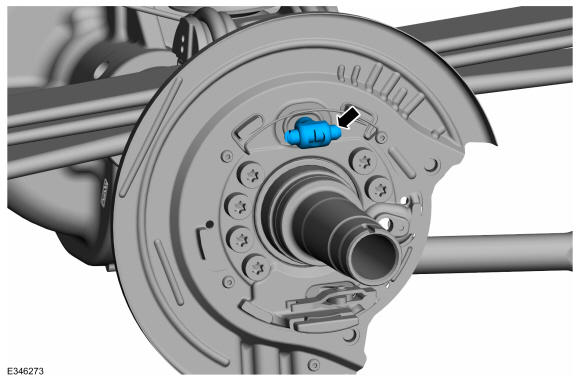

4. Remove the brake shoe adjuster.

Courtesy of FORD MOTOR COMPANY
