Parking Brake Shoes - 5 Ton Vehicle, Vehicles With: Drum-in-Hat: Installation

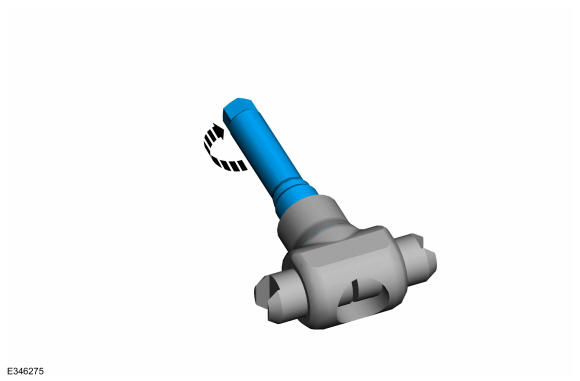

- Remove the adjuster screw from the adjuster housing.

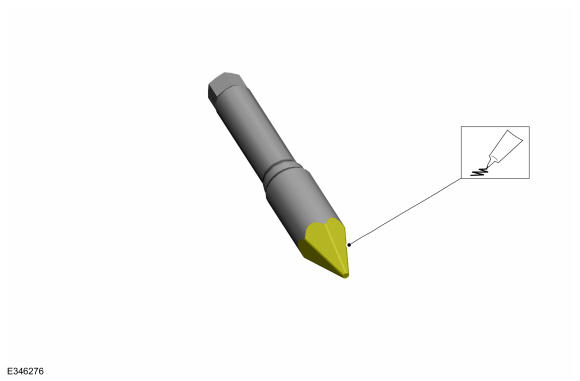

- Using specified grease, lubricate the adjuster screw contact points. Refer to: Specifications
.

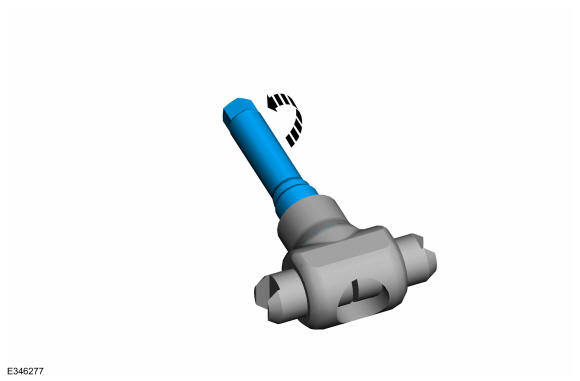

- Install the adjuster screw in the adjuster housing.

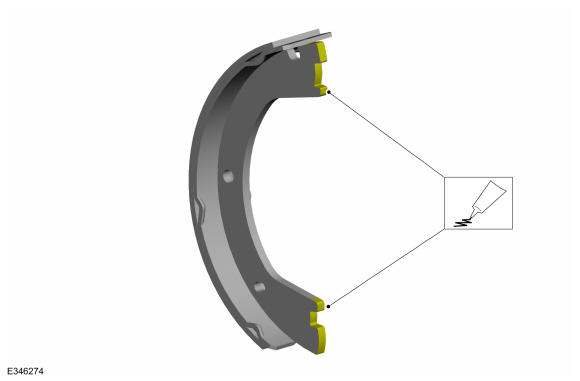

- Using specified grease, lubricate the parking brake shoe contact points. Refer to: Specifications
.
- On both sides.

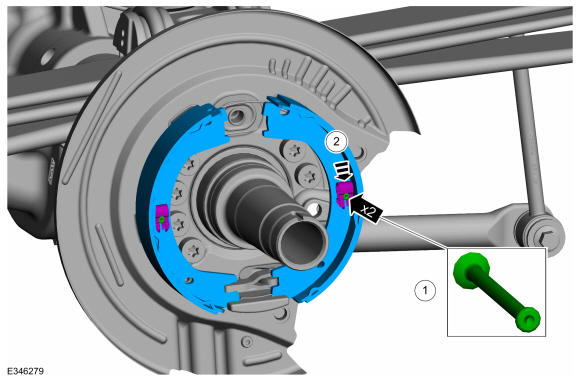

- Install the parking brake shoes and pins.
- Install the hold down springs.

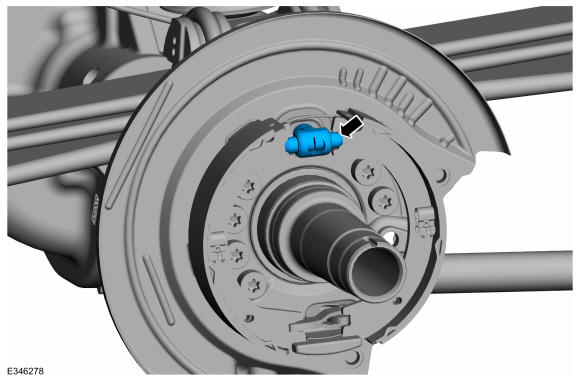

- Install the brake shoe adjuster.

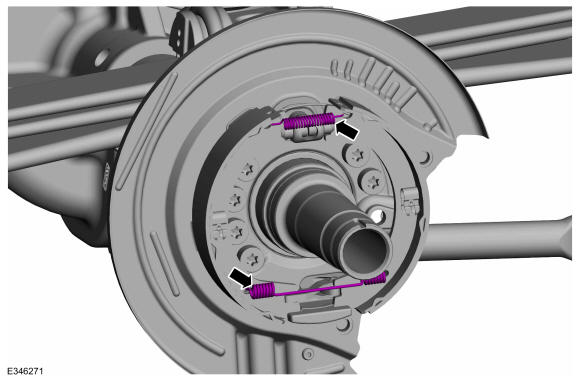

- Install the return springs.
- Adjust the parking brake shoes. Refer to: Parking Brake Shoe Adjustment - 5 Ton Vehicle, Vehicles With: Drum-in-Hat .
