Parking Brake Rear Cables: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Jacking and Lifting - Overview .
  2. Loosen: 5 turn(s)
    GFD636652Courtesy of FORD MOTOR COMPANY

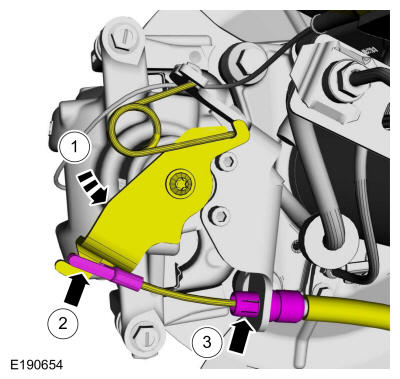

  3. GFD636656Courtesy of FORD MOTOR COMPANY

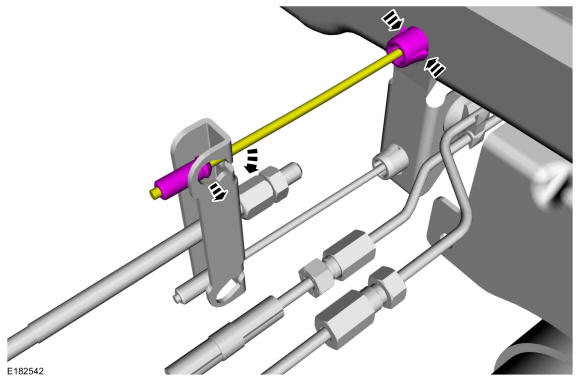

  4. GFD636657Courtesy of FORD MOTOR COMPANY

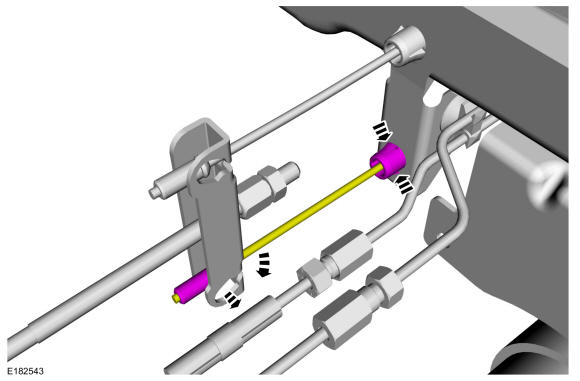

  5. GFD636658Courtesy of FORD MOTOR COMPANY
  6. If equipped.

    Torque: 18 lb.ft (25 Nm)

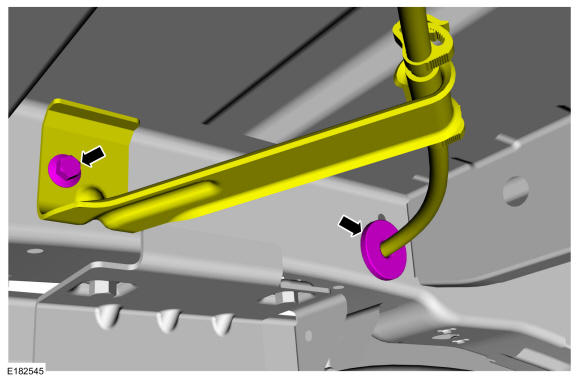

    GFD636659Courtesy of FORD MOTOR COMPANY
  7. If equipped.

    Torque: 18 lb.ft (25 Nm)

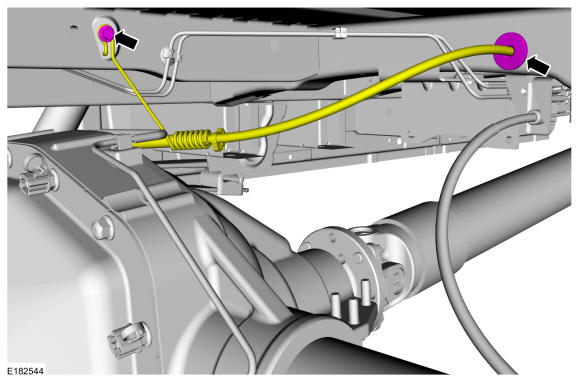

    GFD636660Courtesy of FORD MOTOR COMPANY
  8. Torque

    : 81 lb.ft (110 Nm)

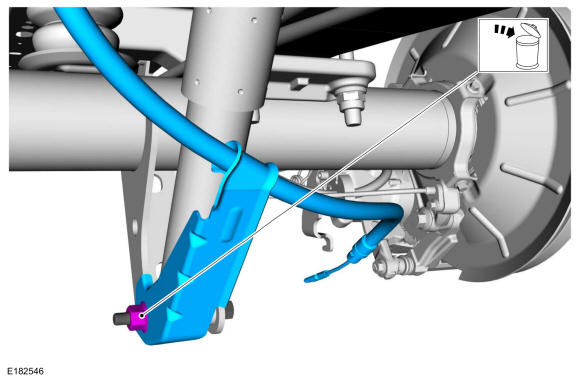

    GFD636661Courtesy of FORD MOTOR COMPANY
