Parking Brake Rear Cables - Vehicles With: Single Rear Wheels: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Jacking and Lifting - Overview .
2. Loosen: 5 turn(s)

   Courtesy of FORD MOTOR COMPANY

3. Courtesy of FORD MOTOR COMPANY

4. NOTE: Note the position of the components before removal.
   NOTE: Make sure that the components are installed to the position noted before removal.

   Courtesy of FORD MOTOR COMPANY

5. Courtesy of FORD MOTOR COMPANY

6. Courtesy of FORD MOTOR COMPANY

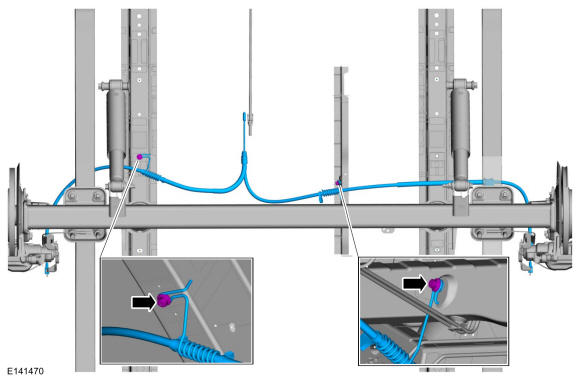

FWD

7. NOTE: Note the position of the components before removal.
   NOTE: Make sure that the components are installed to the position noted before removal.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

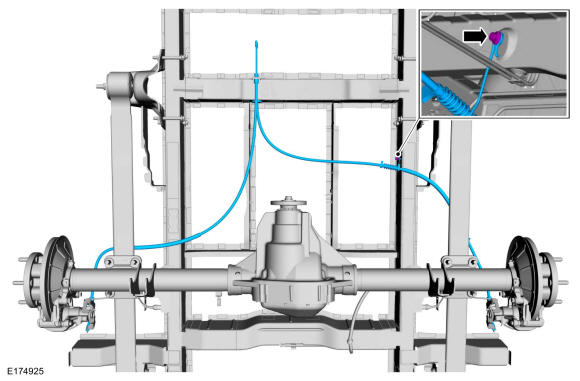

   RWD

8. NOTE: Note the position of the components before removal.
   NOTE: Make sure that the components are installed to the position noted before removal.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
