Parking Brake Intermediate Cable - 5 Ton Vehicle, Vehicles With: Drum-in-Hat: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

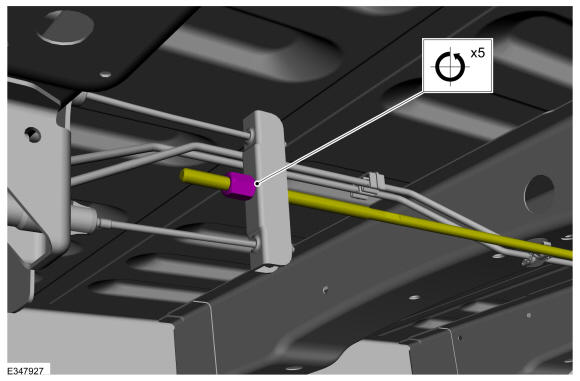

2. Loosen the parking brake intermediate cable nut. Loosen: 5 turn(s)

   Courtesy of FORD MOTOR COMPANY

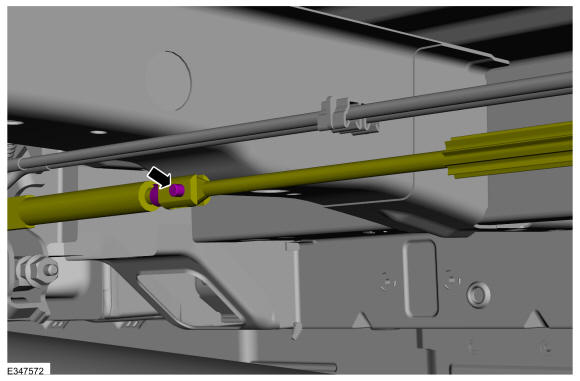

3. Remove the retainer and disconnect the parking brake intermediate cable.

   Courtesy of FORD MOTOR COMPANY

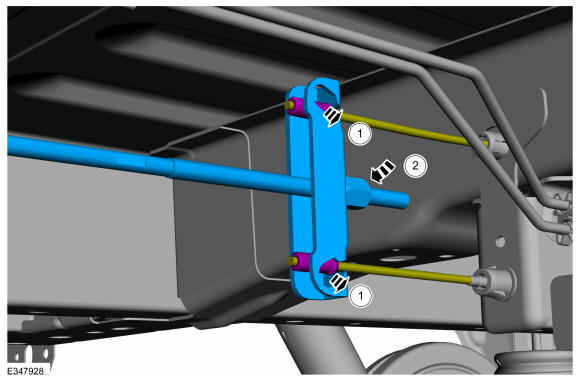

4. Disconnect the rear parking brake cables and remove the parking brake intermediate cable.

Courtesy of FORD MOTOR COMPANY
