Parking Brake Front Cable: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Jacking and Lifting - Overview .
  2. Loosen: 5 turn(s)
    GFD636652Courtesy of FORD MOTOR COMPANY

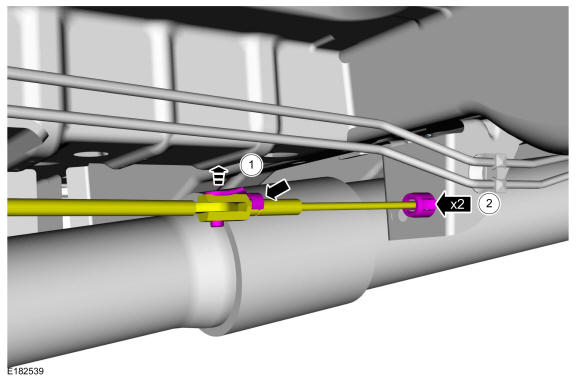

  3. GFD636670Courtesy of FORD MOTOR COMPANY

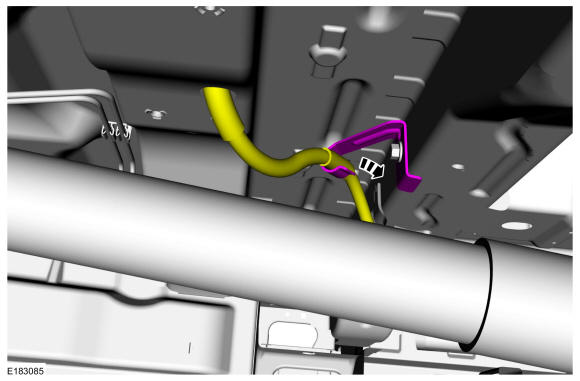

  4. GFD636671Courtesy of FORD MOTOR COMPANY
  5. Torque

    : 10 lb.in (1.1 Nm)

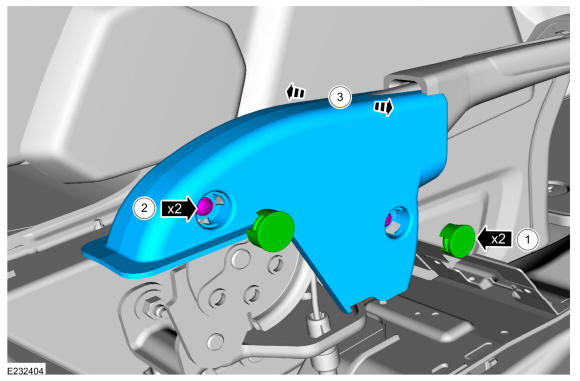

  6. GFD636662Courtesy of FORD MOTOR COMPANY

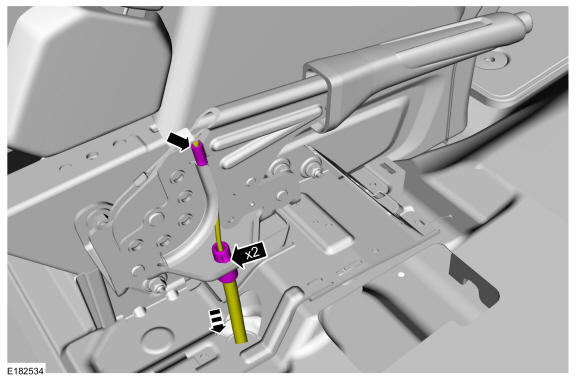

  7. GFD636664Courtesy of FORD MOTOR COMPANY

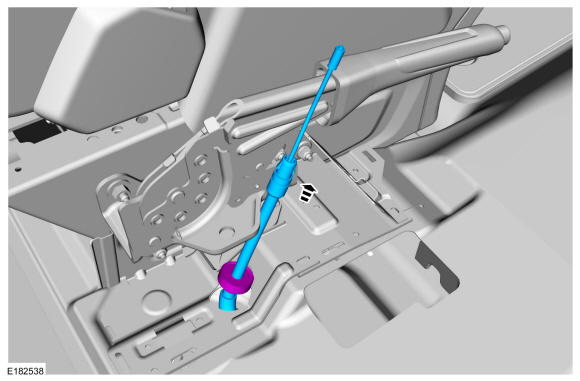

  8. GFD636672Courtesy of FORD MOTOR COMPANY
