Parking Brake Front Cable - 5 Ton Vehicle, Vehicles With: Drum-in-Hat: Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

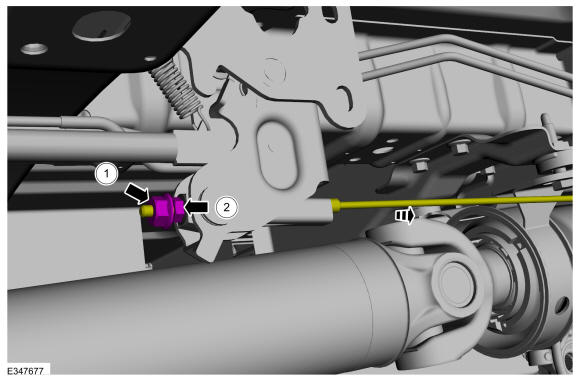

Remove the nuts and disconnect the parking brake front cable.
Torque: Torque: 1: 97 lb.in (11 Nm) Torque: 2: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

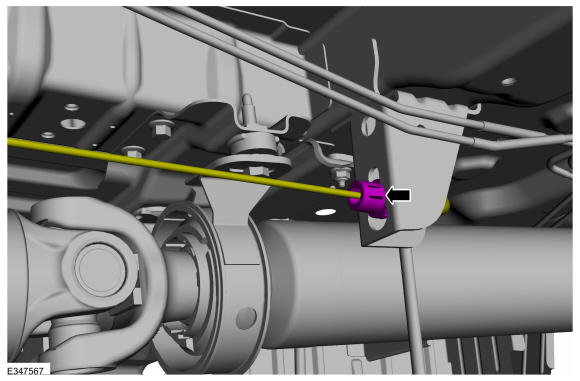

Detach the retainer and disconnect the parking brake front cable.

Courtesy of FORD MOTOR COMPANY
Remove the floor console.
1. Remove the caps.
2. Remove the screw and parking brake control cover.
  Torque: 10 lb.in (1.1 Nm)
Courtesy of FORD MOTOR COMPANY

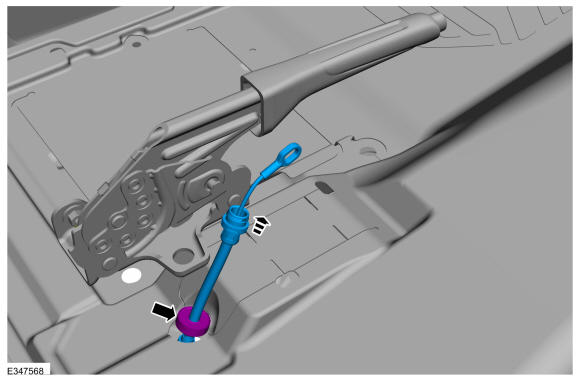

1. Disconnect the front parking brake cable from the parking brake control.
2. Detach the retainer and front parking brake cable.
Courtesy of FORD MOTOR COMPANY
Remove the grommet and parking brake front cable.

Courtesy of FORD MOTOR COMPANY
