Parking Brake Control - 5 Ton Vehicle, Vehicles With: Drum-in-Hat: Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

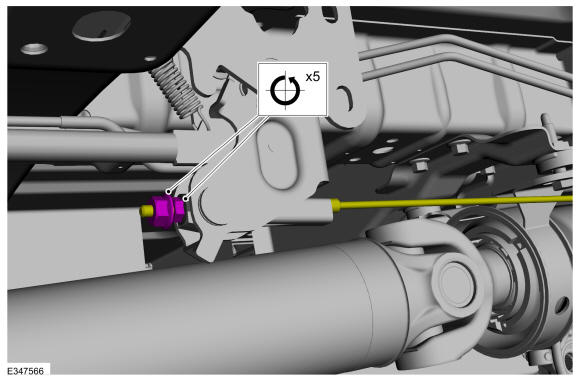

Loosen the cable adjustment nuts. Loosen: 5 turn(s)

Courtesy of FORD MOTOR COMPANY
Remove the floor console.
1. Remove the caps.
2. Remove the screw and parking brake control cover.
  Torque: 10 lb.in (1.1 Nm)
Courtesy of FORD MOTOR COMPANY

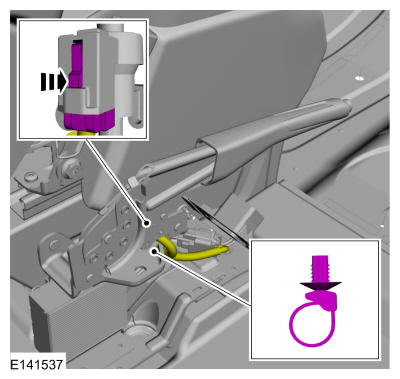

Detach the connector and clips and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY

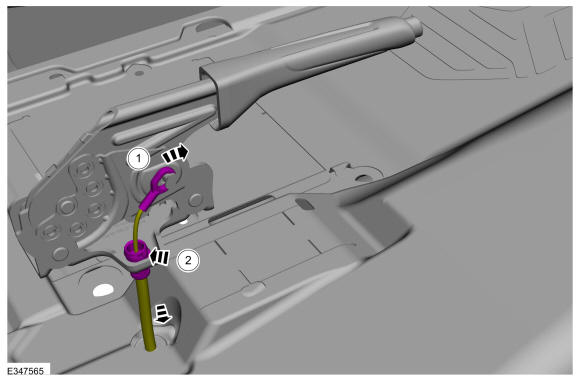

1. Disconnect the front parking brake cable from the parking brake control.
2. Detach the retainer and front parking brake cable.
Courtesy of FORD MOTOR COMPANY
Remove the front passenger seat. Refer to: Front Seat .
Remove the battery.

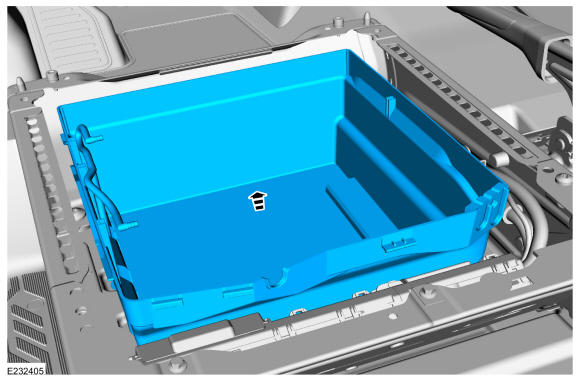

Remove the battery tray.

Courtesy of FORD MOTOR COMPANY

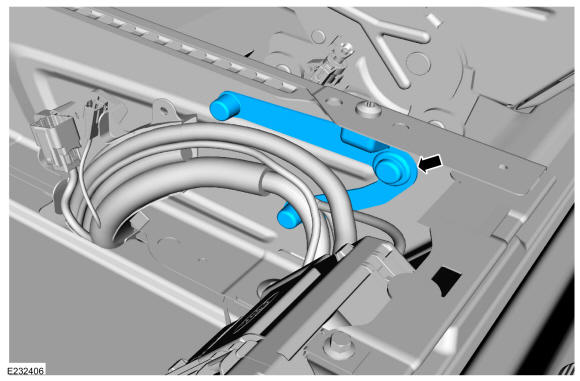

Remove the protector trim for the parking brake control mounting fasteners.

Courtesy of FORD MOTOR COMPANY

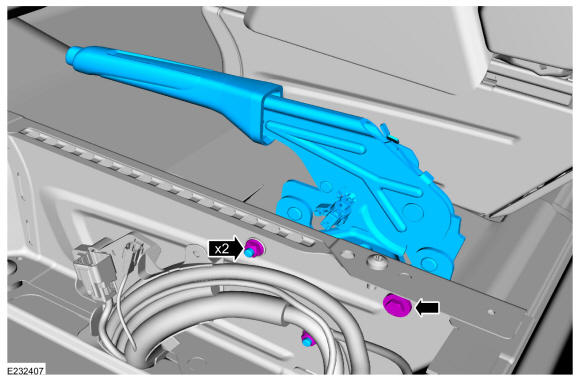

Remove the nuts, bolt and parking brake control assembly.
Torque: 18 lb.ft (25 Nm)
