Parking Brake Cable RH - 5 Ton Vehicle, Vehicles With: Drum-in-Hat: Removal

NOTE: Removal steps in this procedure may contain installation details.

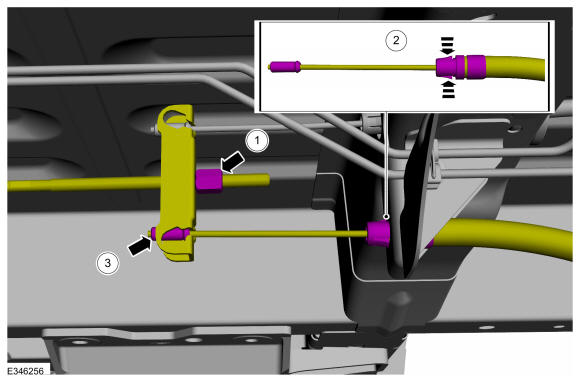

1. Loosen the parking brake cable adjustment nut.
2. Push inward on the 2 tabs and detach the RH cable from the bracket.
3. Rotate the cable, slide the pin and detach the cable from the equalizer.
Courtesy of FORD MOTOR COMPANY

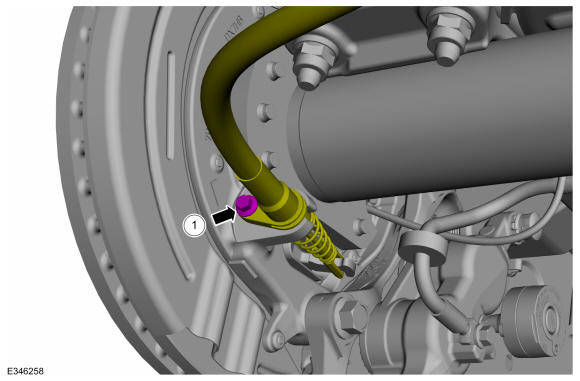

Remove the bolt and RH parking brake cable from the backplate.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

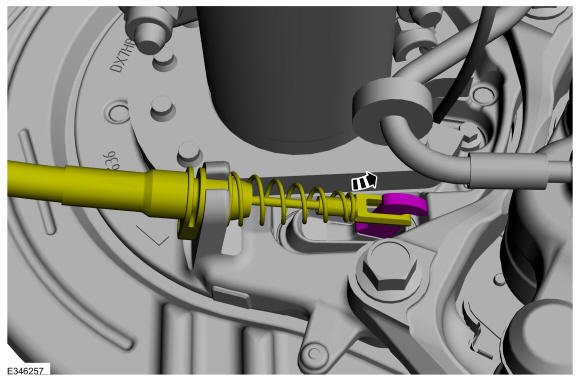

Disconnect the RH parking brake cable from the actuation lever.

Courtesy of FORD MOTOR COMPANY

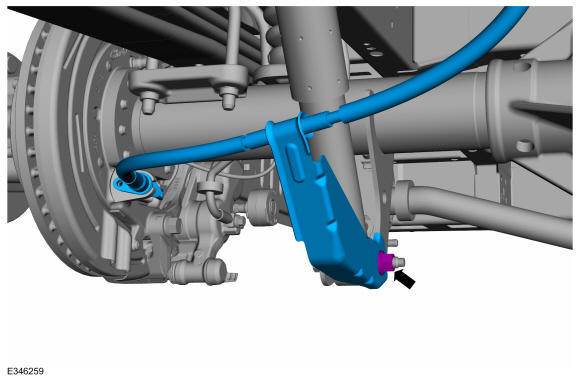

Remove the nut and RH parking brake cable.
Torque: 81 lb.ft (110 Nm)
