Parking Brake Shoe Adjustment - 5 Ton Vehicle, Vehicles With: Drum-in-Hat

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Activation

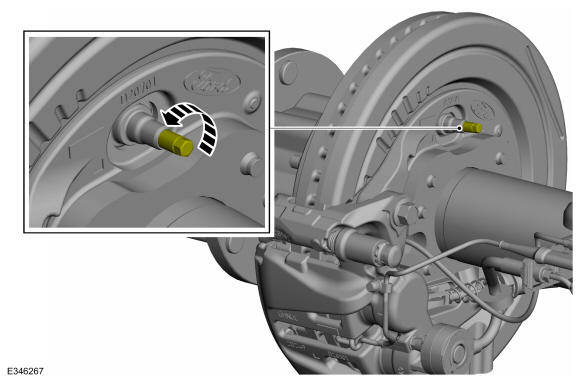

1. Using a suitable torque sensing tool, tighten the adjuster clockwise to an application torque not to exceed 10 Nm.

   Courtesy of FORD MOTOR COMPANY

2. Rotate the adjuster anti-clockwise removing 5 clicks of adjustment.

Courtesy of FORD MOTOR COMPANY
