Rear Brake Pads - 5 Ton Vehicle, Vehicles With: Drum-in-Hat: Installation

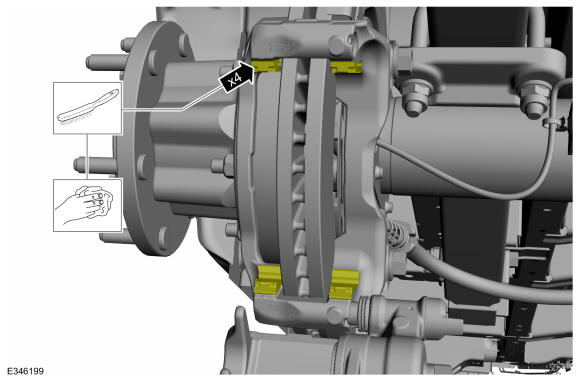

  1. Clean the brake pad to anchor plate contact points.
    GFD636630Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
  3. Apply the brake pedal several times to verify correct brake system operation.
