Rear Brake Flexible Hose - Electric Motor (C0): Removal

WARNING: Service actions on vehicles equipped with electronic parking brakes may cause unexpected parking brake application, which could result in injury to hands or fingers. Put the electronic parking brake system into service mode prior to servicing or removing rear brake components. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

1. Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
2. Remove the wheel and tire. Refer to: Wheel and Tire .

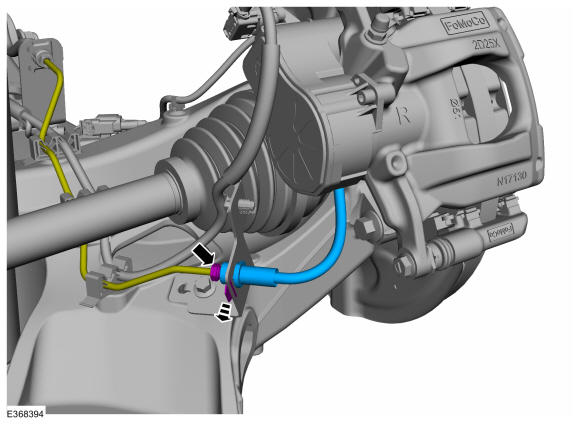

3. Remove the bolt and disconnect the brake hose. Discard the washers.

   Courtesy of FORD MOTOR COMPANY

4. Disconnect the brake tube fitting and remove the brake hose clip and the brake flexible hose.

   Torque

   : 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
