Rear Brake Disc Shield - Electric Motor (C0): Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the brake disc. Refer to: Brake Disc - Electric Motor (C0) .

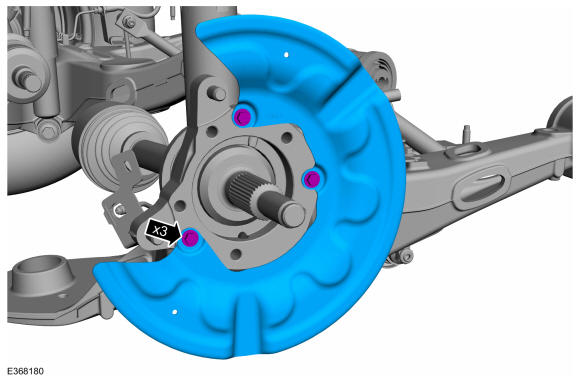

2. Remove the bolts and the brake disc shield.

   Torque

   : 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
