Rear Brake Caliper Anchor Plate - Vehicles With: Electronic Parking Brake (EPB): Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the brake pads. Refer to: Brake Pads - Vehicles With: Electronic Parking Brake (EPB) .
NOTE: Discard the bolts.

NOTE: Make sure that new bolts are installed.

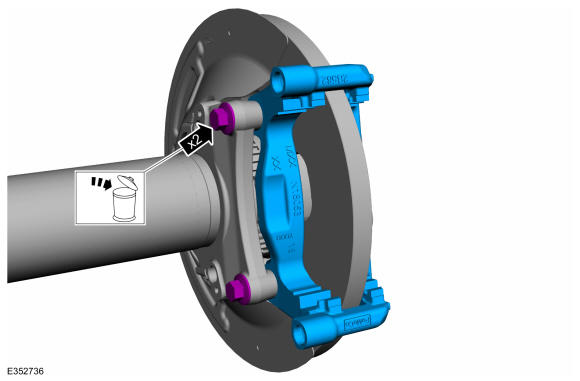

Remove the bolts and the brake caliper anchor plate. Discard the bolts.

Torque:

SRW:: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
