Rear Brake Caliper - Electric Motor (C0): Removal

WARNING: Service actions on vehicles equipped with electronic brake booster and electronic parking brakes may cause unexpected brake application, which could result in injury to hands or fingers. Put the brake system into service mode prior to servicing or removing any brake components. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Activate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .
Remove the wheel and tire. Refer to: Wheel and Tire .

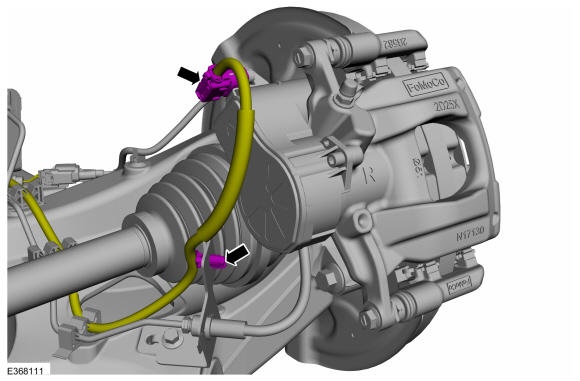

Disconnect the EPB actuator motor electrical connector and detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY

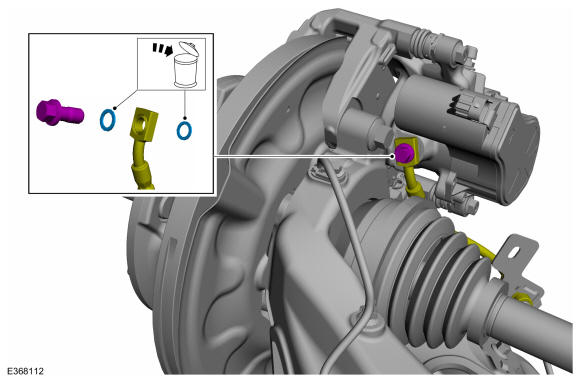

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

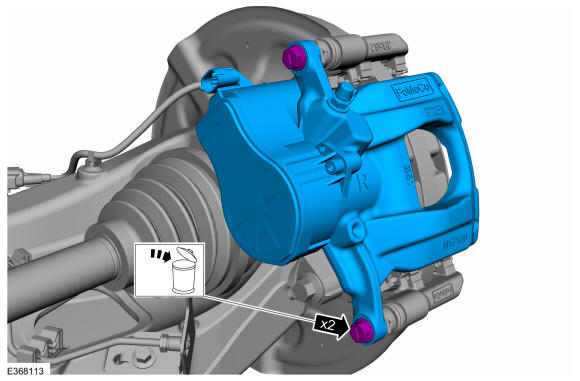

Remove the bolts and the brake caliper. Discard the bolts.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

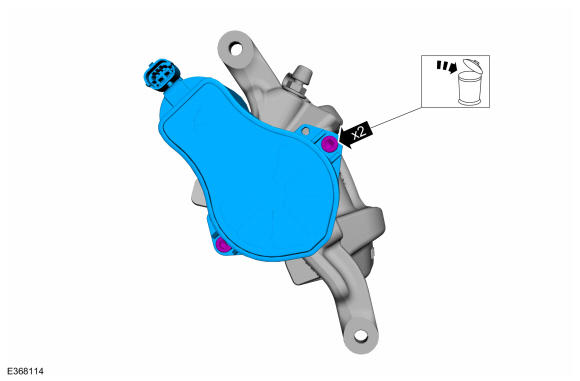

Remove the bolts and the EPB actuator motor. Discard the bolts.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

NOTE: Make sure that a new component is installed if the O-ring is damaged.

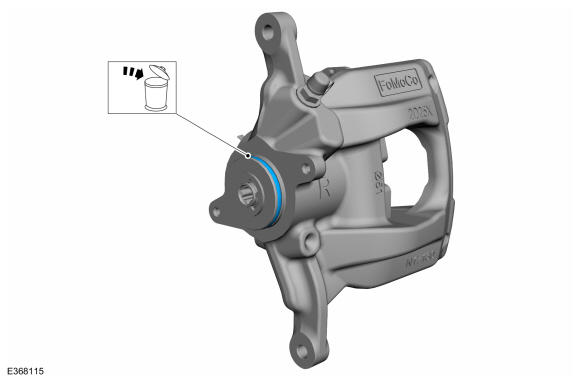

Remove and discard the O-ring.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

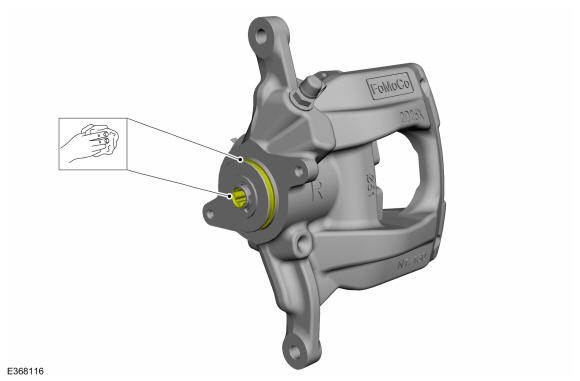

Clean the brake caliper housing O-ring groove.
