Brake Vacuum Pump - Electric Motor (C0): Removal
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Electric Motor (C0) - Overview .

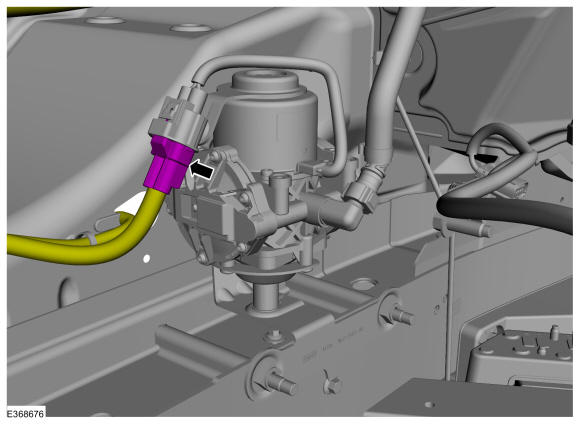

- Disconnect the vacuum pump electrical connector.

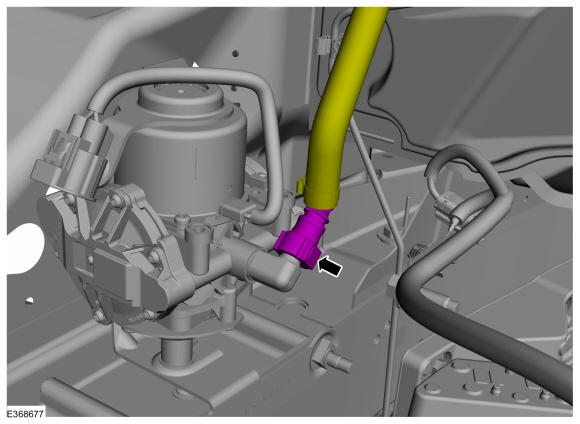

- Detach the vacuum hose from the vacuum pump.

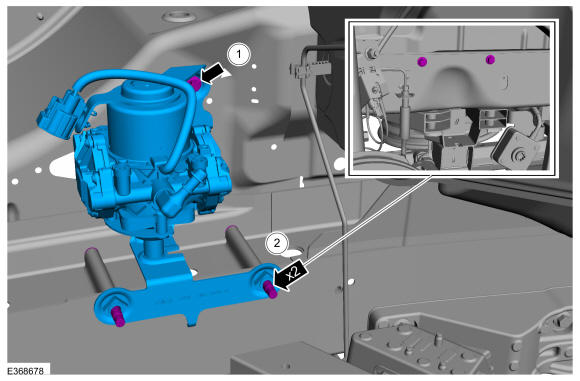

- Remove the vacuum pump mounting bolts and the vacuum pump.
Torque: Torque 1: 18 lb.ft (25 Nm) Torque 2: 41 lb.ft (55 Nm)
