Brake Vacuum Hose: Removal

NOTE: Removal steps in this procedure may contain installation details.

LHD

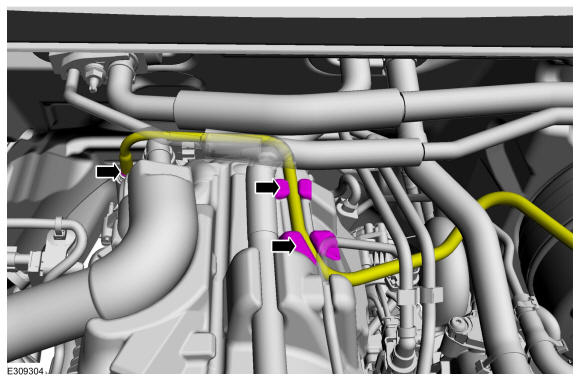

  1. GFD636756Courtesy of FORD MOTOR COMPANY

    2. RHD

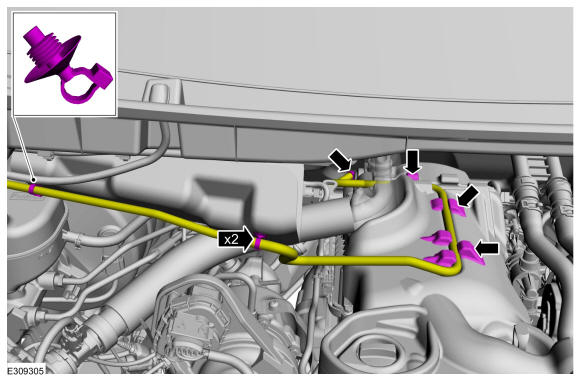

  2. GFD636757Courtesy of FORD MOTOR COMPANY

    3. All vehicles

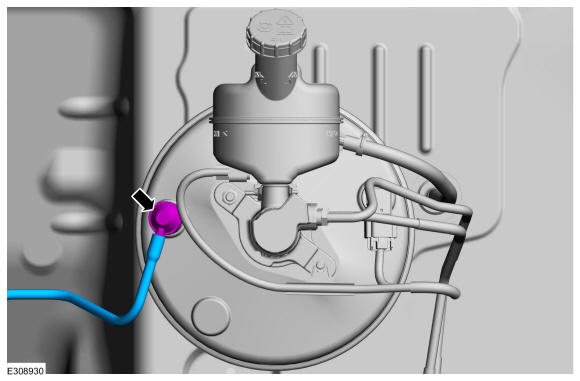

  3. GFD636758Courtesy of FORD MOTOR COMPANY
