Brake Vacuum Hose - Electric Motor (C0): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Detach the vacuum hose from the vacuum pump.
    GFD636754Courtesy of FORD MOTOR COMPANY

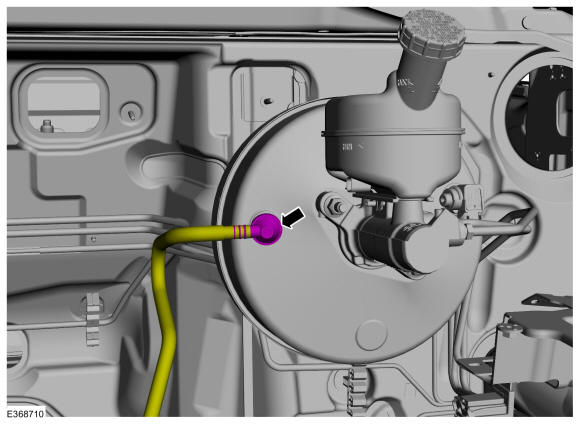

  2. Detach the vacuum hose from the brake booster.
    GFD636759Courtesy of FORD MOTOR COMPANY

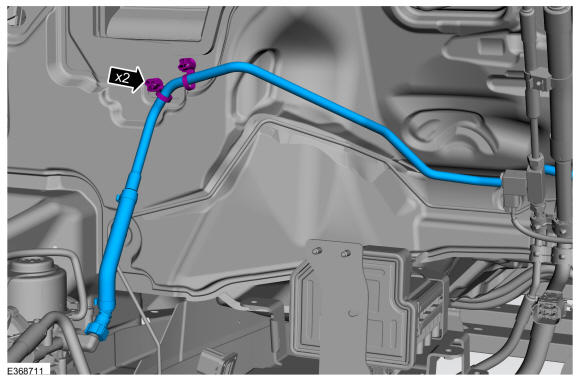

  3. Remove the retainers and brake vacuum hose.
GFD636760Courtesy of FORD MOTOR COMPANY
