Brake Booster: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the windshield wiper motor. Refer to: Windshield Wiper Motor .
- Remove the brake master cylinder. Refer to: Brake Master Cylinder - LHD .

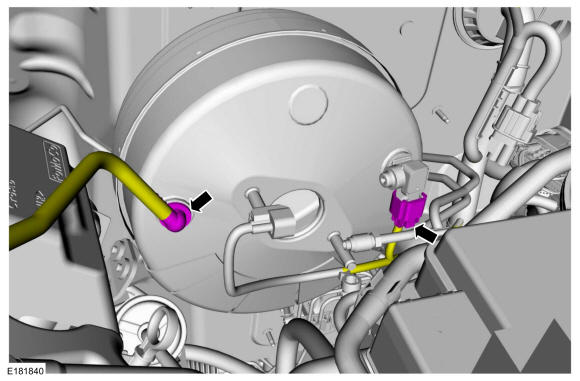

- Disconnect the vacuum tube and the vacuum sensor

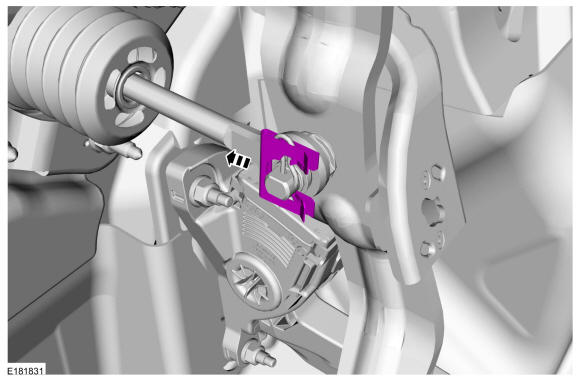

- Remove the clip.

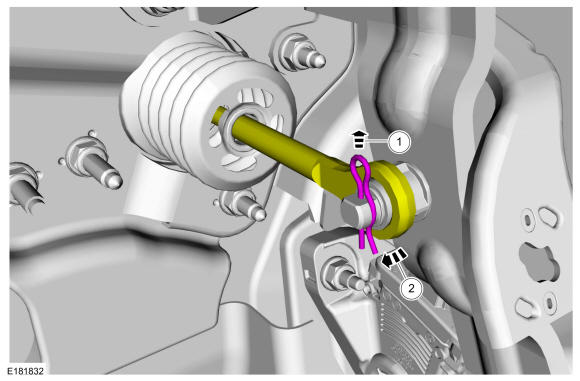

- Remove the brake pedal locking pin and disconnect the brake booster push rod from the brake pedal arm.

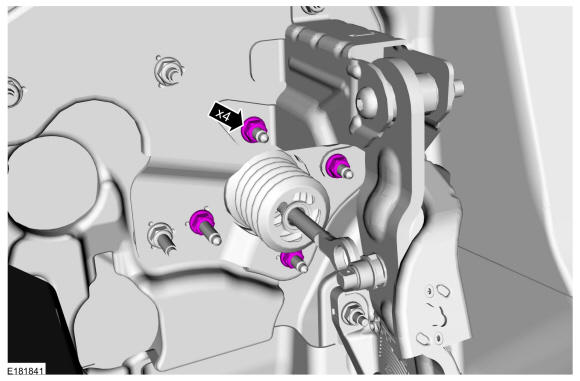

- Remove and discard the nuts.
Torque: 177 lb.in (20 Nm)

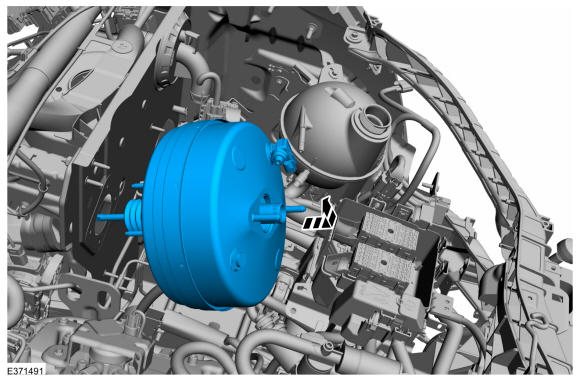

- Remove the brake booster.
