Brake Pedal and Bracket - RHD: Removal

NOTE: Removal steps in this procedure may contain installation details.

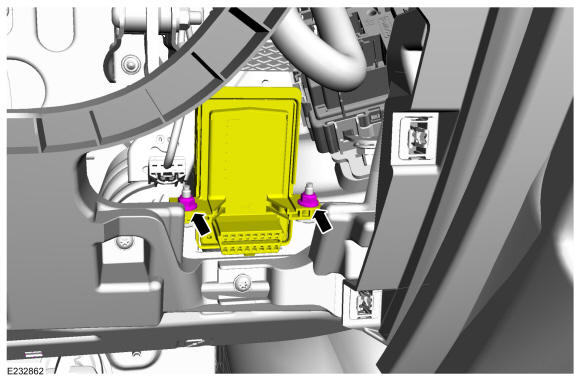

Courtesy of FORD MOTOR COMPANY
Refer to: Accelerator Pedal .
Refer to: Steering Column .

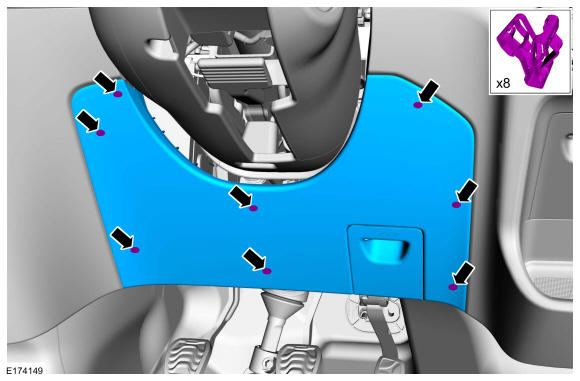

Courtesy of FORD MOTOR COMPANY

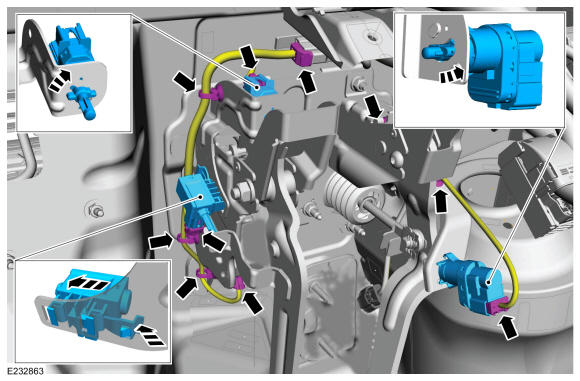

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the clutch pedal remains in the rest position.

NOTE: Make sure that the brake pedal remains in the rest position.

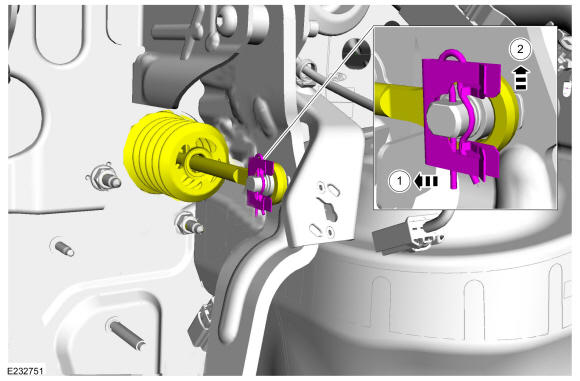

Courtesy of FORD MOTOR COMPANY

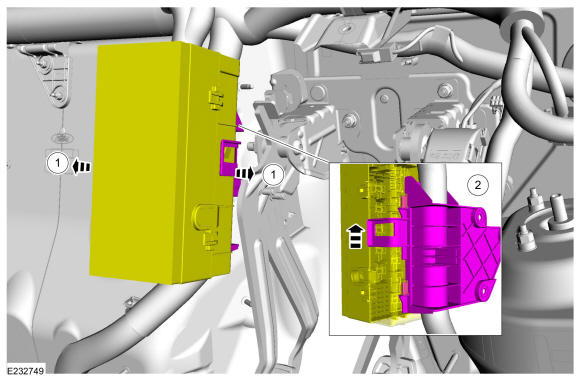

Courtesy of FORD MOTOR COMPANY
Torque
: 89 lb.in (10 Nm)

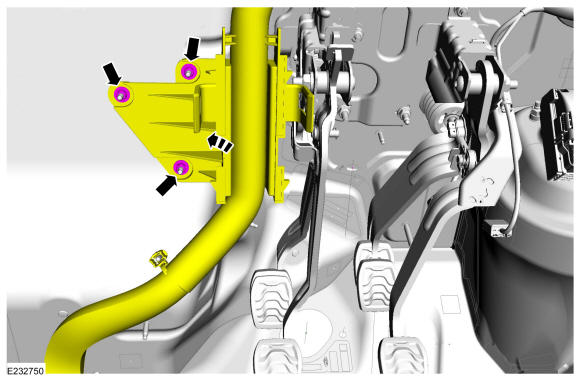

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the brake booster vacuum is released.

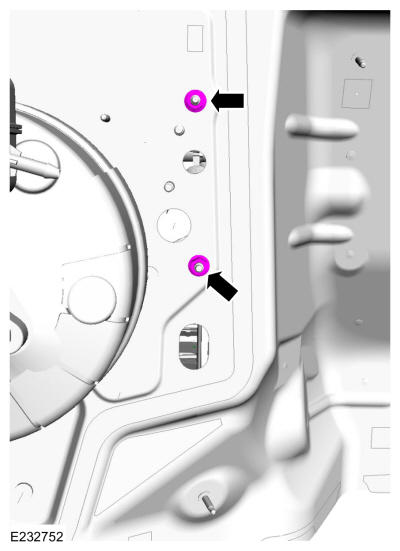

Courtesy of FORD MOTOR COMPANY
Torque
: 177 lb.in (20 Nm)
Support the brake booster.
Torque

: 177 lb.in (20 Nm)

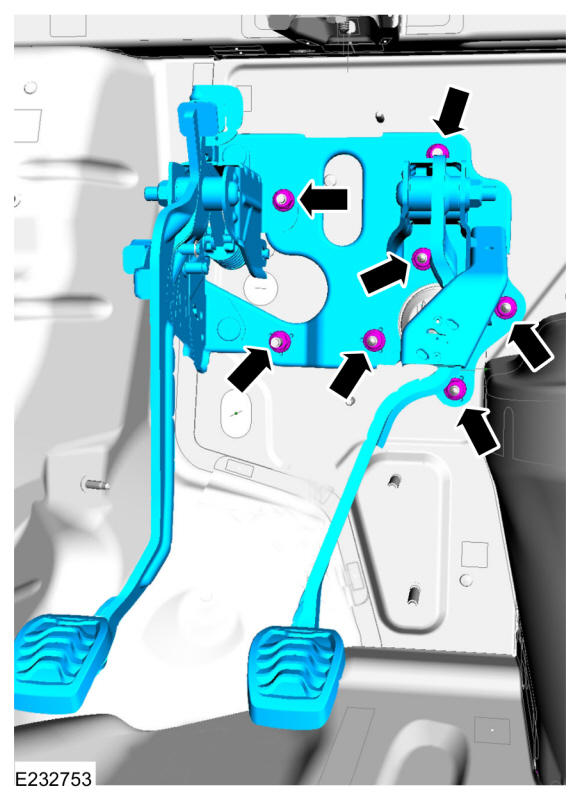

Courtesy of FORD MOTOR COMPANY

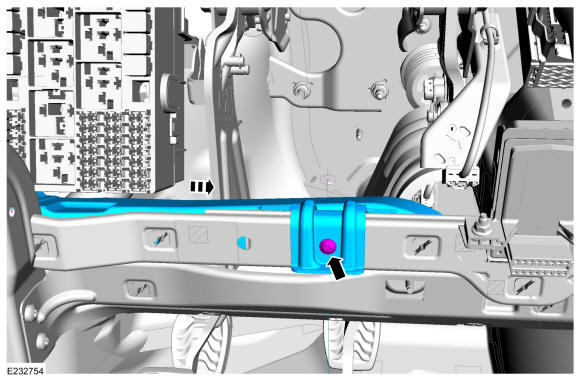

Courtesy of FORD MOTOR COMPANY
