Brake Master Cylinder - RHD: Removal

NOTE: Removal steps in this procedure may contain installation details.

Courtesy of FORD MOTOR COMPANY

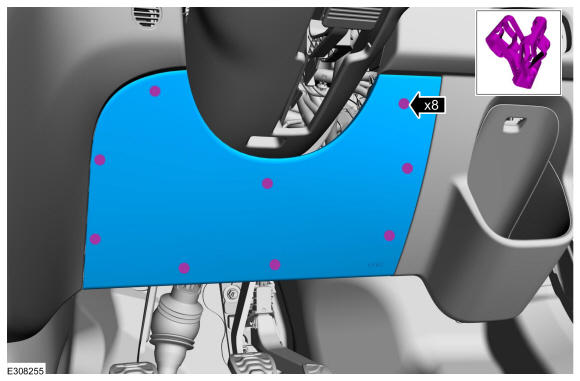

NOTE: Make sure that the brake pedal remains in the rest position.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the brake booster vacuum is released.

NOTE: Do not press the brake pedal fully. Depress the brake pedal right below the not actuated accelerator pedal.

Courtesy of FORD MOTOR COMPANY

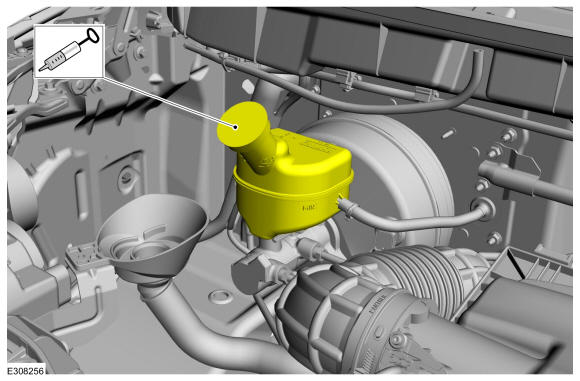

Use the General Equipment: Brake/Clutch System Pressure Bleeder/Filler

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

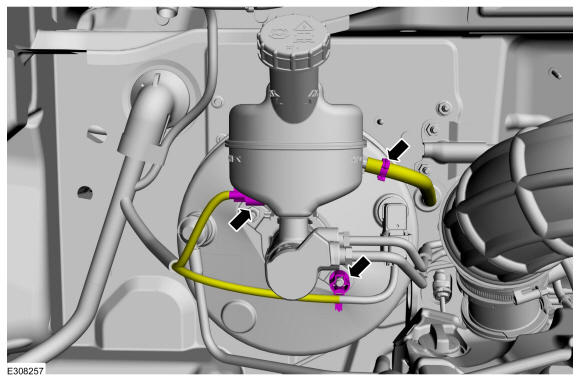

NOTE: Make sure that all openings are sealed.

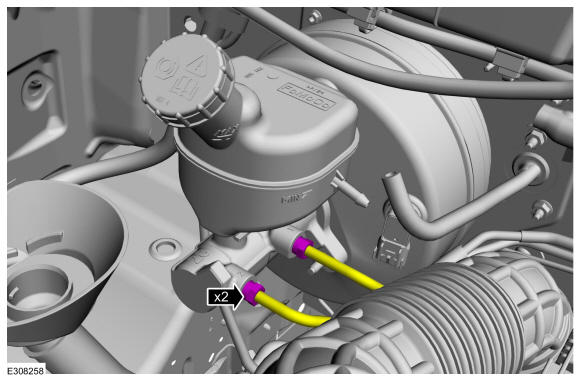

Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY

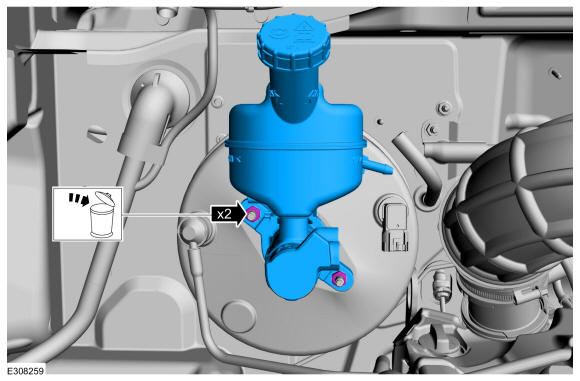

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Install new brake fluid reservoir seals. Lubricate the seals with clean, specified brake fluid.

NOTE: This step is only necessary when installing a new component.

Material

: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)

Courtesy of FORD MOTOR COMPANY
