Front Brake Pads - 5 Ton Vehicle, Vehicles With: Drum-in-Hat: Installation

NOTE: Make sure the brake caliper anchor plate and guide pins are clean and free of foreign material.

NOTE: Make sure that the components are installed to the position noted before removal.

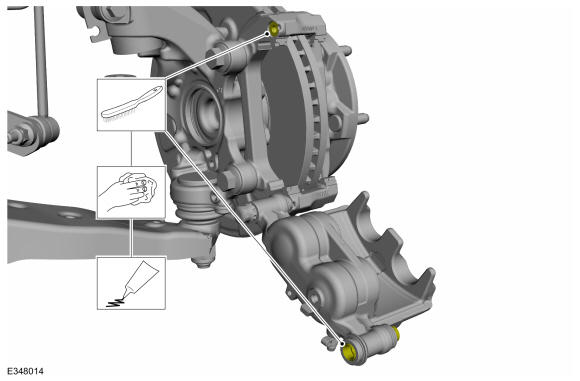

Clean and inspect the anchor plate and the guide pins. Apply the lubricant to the guide pins supplied with brake pad kit. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid. Refer to: Specifications .
