Front Brake Flexible Hose - 5 Ton Vehicle, Vehicles With: Drum-in-Hat: Removal
NOTE:
If the brake fluid is spilled on any component, the affected area must be immediately washed down with cold water.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the wheel and tire. Refer to: Wheel and Tire .
-
NOTE: Make sure that all openings are sealed.

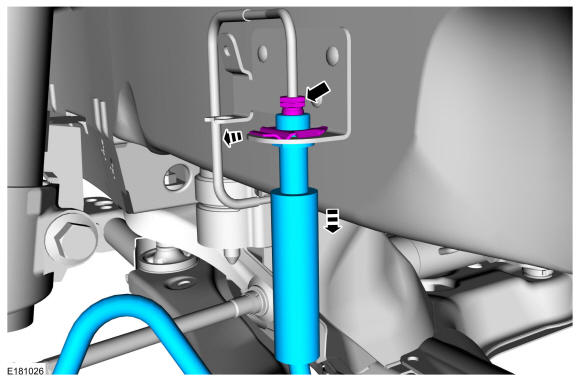

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque: 26 lb.ft (35 Nm)
-
NOTE: Make sure that all openings are sealed.

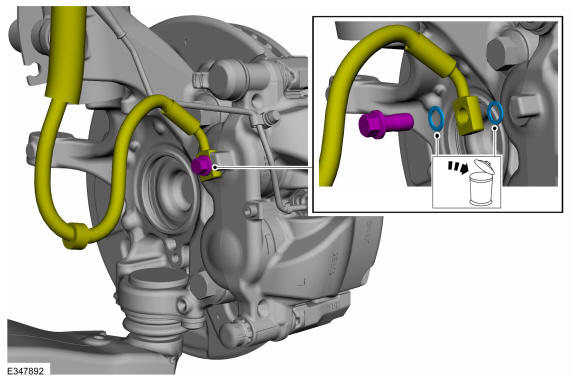

Disconnect the brake tube, remove the clip and remove the front brake flexible hose.
Torque: 159 lb.in (18 Nm)
