Front Brake Disc Shield - 5 Ton Vehicle, Vehicles With: Drum-in-Hat: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front wheel bearing and wheel hub.

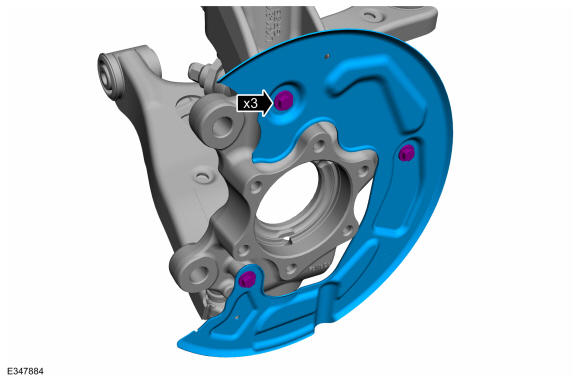

2. Remove the bolts and the brake disc shield.

   Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
