Front Brake Caliper Anchor Plate - 5 Ton Vehicle, Vehicles With: Drum-in-Hat: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake pads. Refer to: Brake Pads - 5 Ton Vehicle, Vehicles With: Drum-in-Hat .

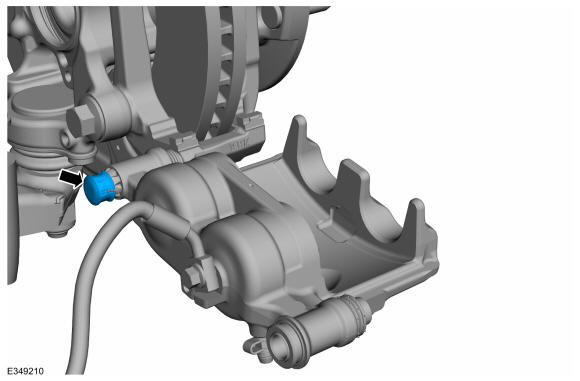

- Remove the guide pin bolt cap.

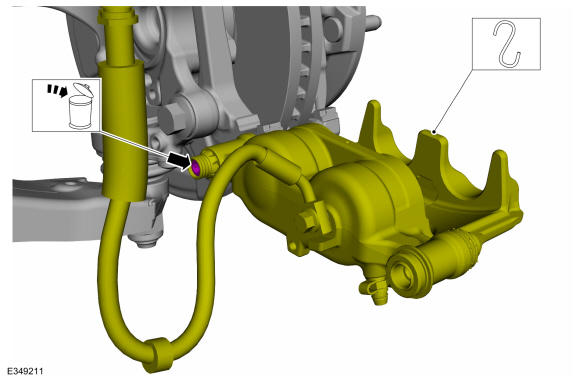

- Remove the bolt and the brake caliper. Discard the bolt. Support the caliper using a mechanic wire and position aside the caliper assembly.
Torque: 25 lb.ft (34 Nm)
-
NOTE: Make sure that new bolts are installed.

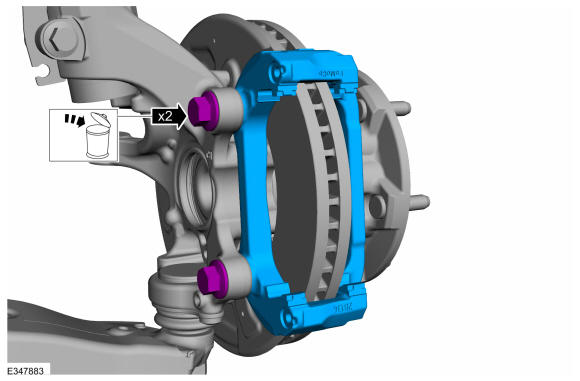

Remove the bolts and the brake caliper anchor plate. Discard the bolts.
Torque: 203 lb.ft (275 Nm)
