Rear Bumper: Removal

Vehicles with parking aid

1. Remove the push pins and disconnect the rear parking aid electrical connector.

   Courtesy of FORD MOTOR COMPANY

   Vehicles without parking aid

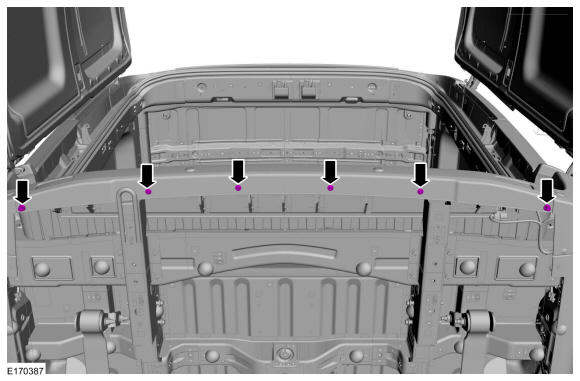

2. Remove the push pins.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

3. Remove the screws and the rear bumper cover.

   Torque: 19 lb.in (2.2 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles with parking aid

4. Disconnect the wiring harness retainers and position the wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

5. On both sides. Disconnect the wiring harness retainers and position the wiring harness aside.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

6. Remove the spare wheel and tire assembly.

   Vehicles with trailer tow

7. On both sides. Remove the trailer hitch bolts.

   Torque: 76 lb.ft (103 Nm)

   Courtesy of FORD MOTOR COMPANY

8. 1. Disconnect the trailer wiring connector.
   2. Remove the bolts.

      Torque: 59 lb.ft (80 Nm)

   3. With the help of an assistant. Remove the trailer hitch assembly.

   Courtesy of FORD MOTOR COMPANY

   Vehicles without trailer tow

9. Remove the screws.

   Torque: 76 lb.ft (103 Nm)

   Courtesy of FORD MOTOR COMPANY

10. With the help of an assistant. Remove the screws and the rear bumper.

    Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
