Rear Bumper Cover: Removal

Vehicles with parking aid

1. Remove the push pins and disconnect the rear parking aid electrical connector.

   Courtesy of FORD MOTOR COMPANY

   Vehicles without parking aid

2. Remove the push pins.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

3. Remove the screws and the rear bumper cover.

   Torque: 19 lb.in (2.2 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Remove the rear lamp assembly. Refer to: Rear Lamp Assembly .

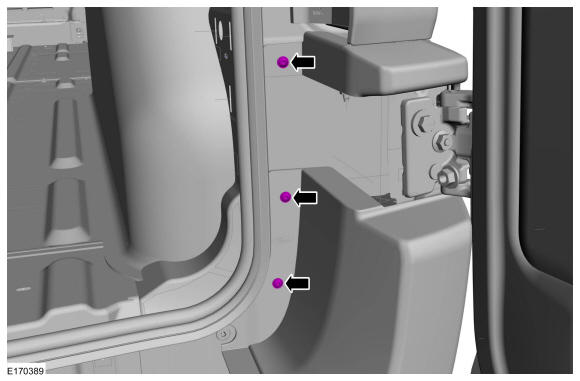

5. On both sides. Remove the screws.

   Torque: 19 lb.in (2.2 Nm)

   Courtesy of FORD MOTOR COMPANY

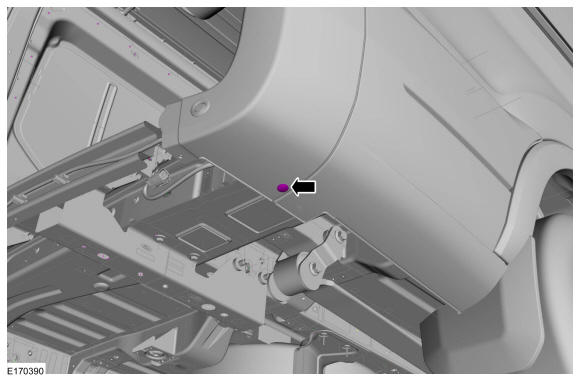

6. On both sides. Remove the trim pin.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with parking aid

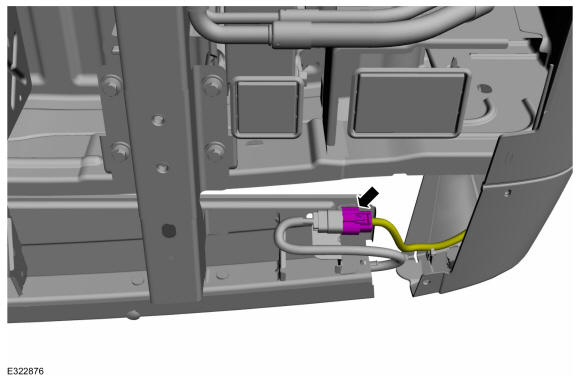

7. On both sides. Disconnect the rear parking aid sensor electrical connector.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

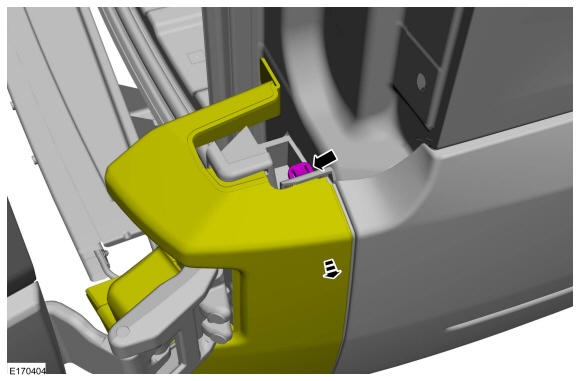

8. On both sides. Release the tab and position the rear bumper cap out.

   Courtesy of FORD MOTOR COMPANY

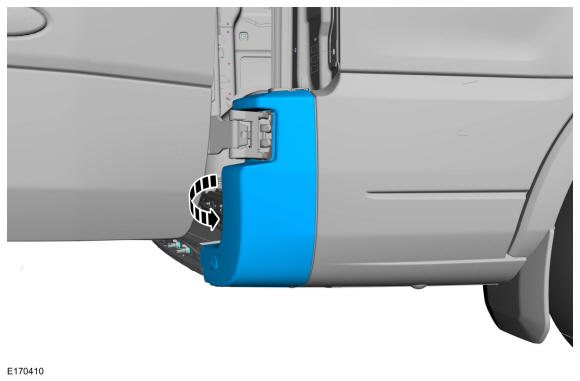

9. On both sides. Remove the rear bumper cap.

Courtesy of FORD MOTOR COMPANY
