Front Bumper Cover - Electric: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front fender molding. Refer to: Front Fender Molding .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

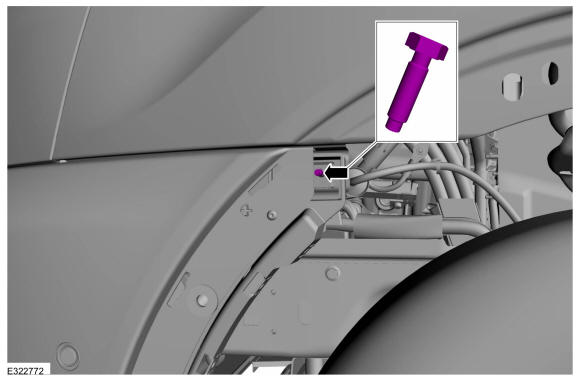

On both sides. Remove the screw.
Torque: 19 lb.in (2.2 Nm)

Courtesy of FORD MOTOR COMPANY

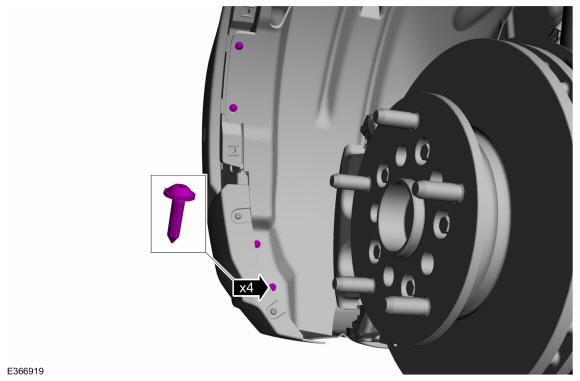

On both sides. Remove the screws.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

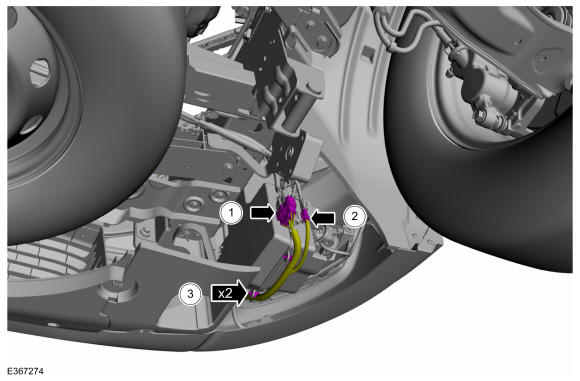

1. Disconnect the front bumper cover wiring harness electrical connector.
2. If equipped. Disconnect the front parking aid camera wiring harness electrical connector.
3. Detach the wiring harness retainers and position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY

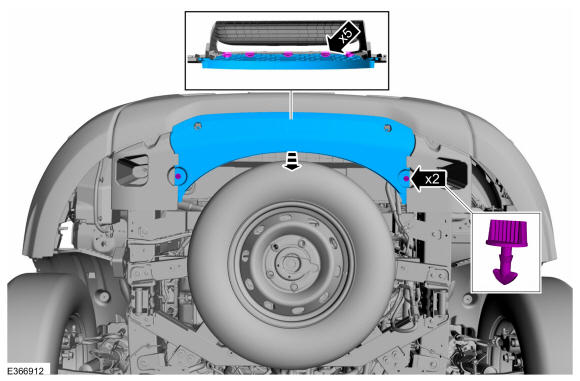

Remove the retainers, release the tabs and remove the front air deflector.

Courtesy of FORD MOTOR COMPANY

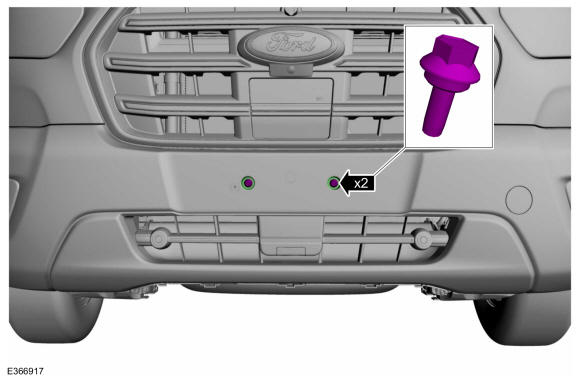

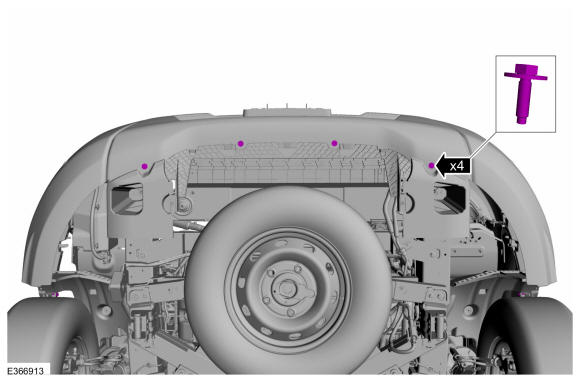

Remove the bolts.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

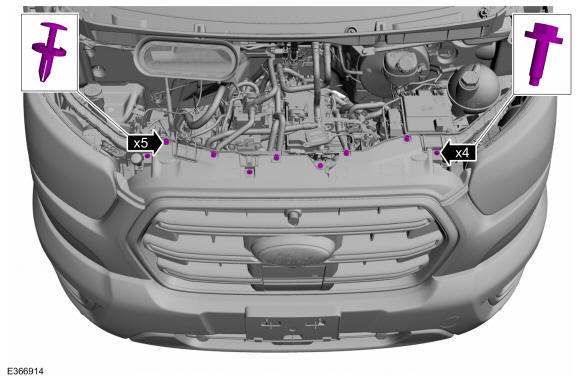

Remove the screws and the trim pins.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

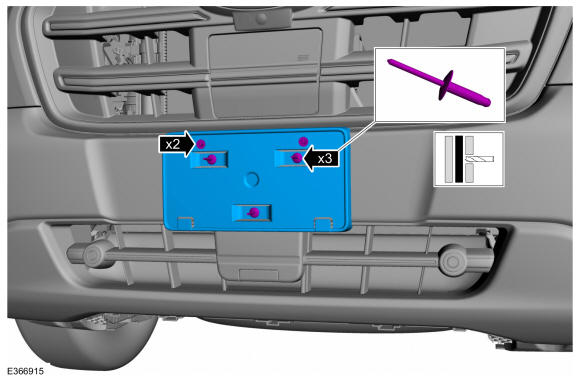

If equipped. Remove the screws, drill the rivets and remove the licence plate bracket. Use the General Equipment: Electric Drill

Courtesy of FORD MOTOR COMPANY
Remove the covers and the screws.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the headlamp assembly. Refer to: Headlamp Assembly .
Vehicles With: Parking Aid Camera

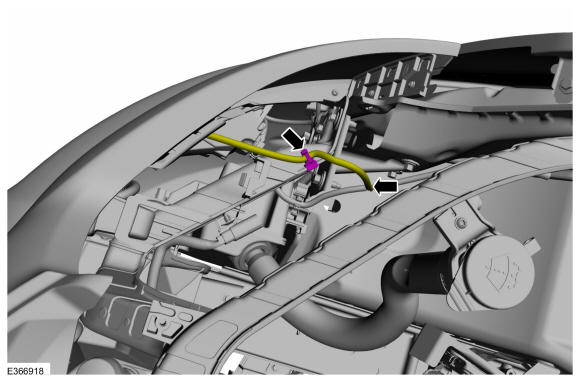

Disconnect the front camera washer hose and the hose clip.

Courtesy of FORD MOTOR COMPANY

All vehicles

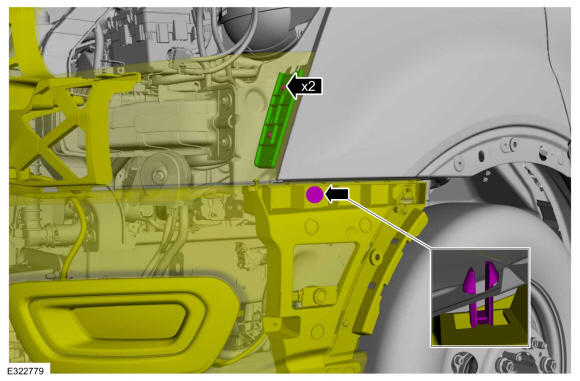

On both sides. Loosen screws, release the tab and separate the outer edges of the front bumper cover assembly.
Torque: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

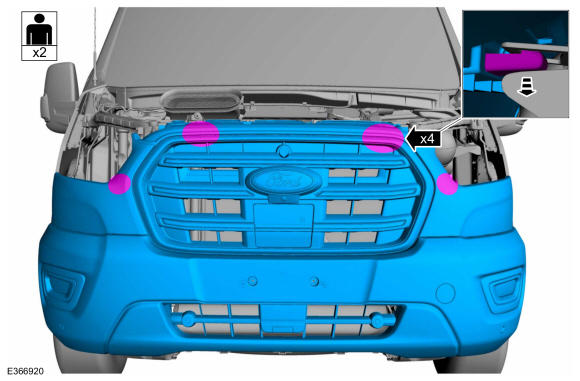

NOTE: This step requires the aid of another technician.

Release the tabs and remove the front bumper cover.

Courtesy of FORD MOTOR COMPANY
