Front Bumper - Electric: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover - Electric .
  2. Remove the CCM. Refer to: Cruise Control Radar .

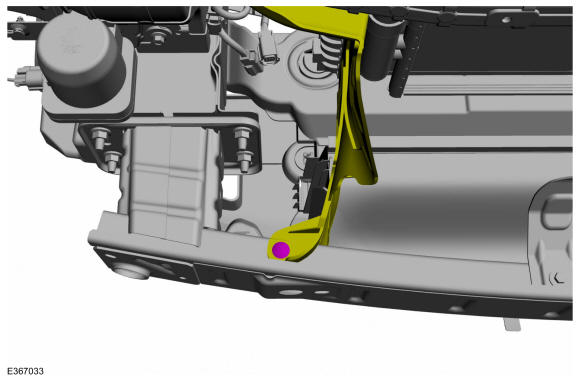

  3. On both sides. Remove the trim pin.
    GFD641790Courtesy of FORD MOTOR COMPANY

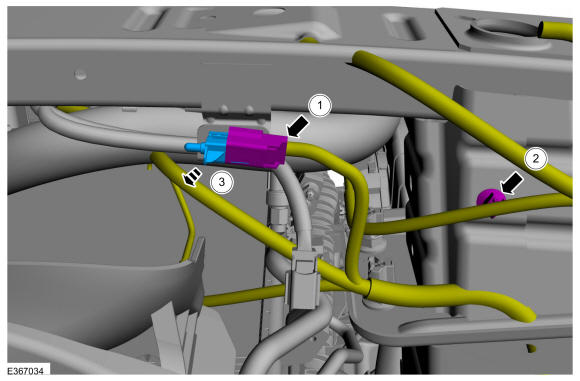

    1. Disconnect the ambient air temperature sensor electrical connector.
    2. Disconnect the wiring harness retainer and position the wiring harness aside.
    3. Detach the ambient air temperature sensor.
    GFD641791Courtesy of FORD MOTOR COMPANY

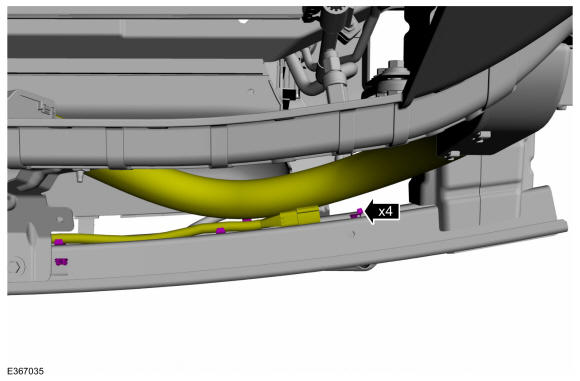

  5. Disconnect the wiring harness retainers and position the wiring harness aside.
    GFD641792Courtesy of FORD MOTOR COMPANY

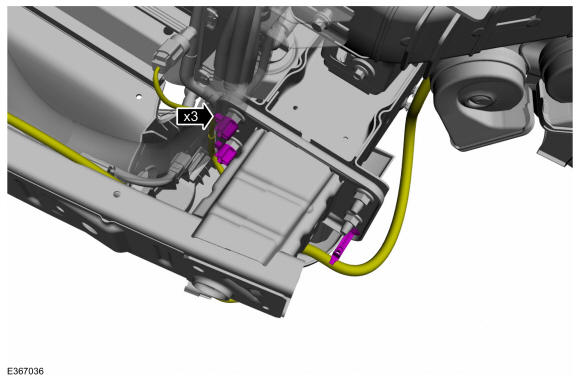

  6. Disconnect the wiring harness retainers and position the wiring harness aside.
    GFD641793Courtesy of FORD MOTOR COMPANY

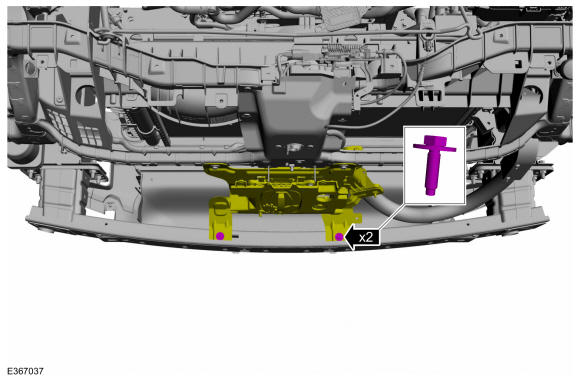

  7. Remove the bolts.

    Torque: 106 lb.in (12 Nm)

    GFD641794Courtesy of FORD MOTOR COMPANY

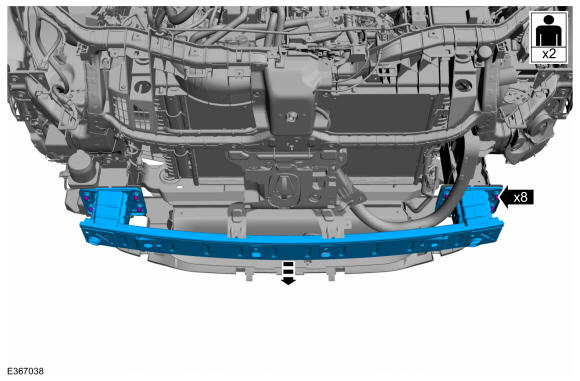

  8. NOTE: This step requires the aid of another technician.

    Remove screws and the front bumper.

    Torque: 35 lb.ft (48 Nm)

GFD641795Courtesy of FORD MOTOR COMPANY
