Three Passenger Bench Seat Backrest - Vehicles With: Rear Seat Recliner: Removal

WARNING: The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure. Failure to follow step instructions may result in incorrect operation of the seat components and increases the risk of serious personal injury.

All backrests

Loosen the bolt and position the center safety belt and buckle aside.
Torque

: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the three passenger bench seat foam and cover as an assembly. Refer to: Three Passenger Bench Seat Cushion Cover .
Remove the LH three passenger seat backrest cover. Refer to: Three Passenger Bench Seat Backrest Cover .
Remove the LH backrest foam while positioning the safety belt through the foam opening.

Courtesy of FORD MOTOR COMPANY
Position the safety belt through the LH backrest upper safety belt guide.

Courtesy of FORD MOTOR COMPANY
1. Release the locking tabs and remove the LH backrest safety belt guide cover.
2. Position the safety belt through the LH backrest safety belt guide.
Courtesy of FORD MOTOR COMPANY
1. Remove the screw.
2. Position the rear seat recline strap aside.
3. Release the retainer and position the seat backrest center cover aside.
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the LH seat backrest.

Courtesy of FORD MOTOR COMPANY

Center and seat backrests
If equipped, loosen the bolt and position the RH seat safety belt and buckle aside.
Torque

: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY

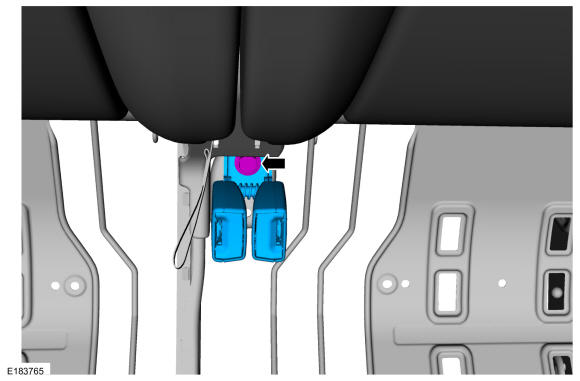

If equipped, loosen the bolt and remove the rear safety belt double buckle.
Torque

: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the seat backrest center cover.

Courtesy of FORD MOTOR COMPANY
Remove the center three passenger seat backrest cover. Refer to: Three Passenger Bench Seat Backrest Cover .
Remove the center backrest foam while positioning the safety belt through the foam opening.

Courtesy of FORD MOTOR COMPANY

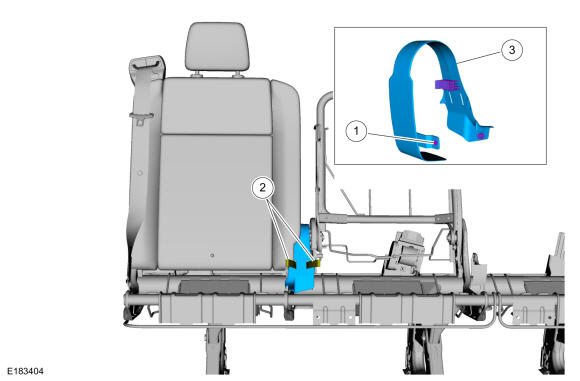

1. If equipped, remove the screw.
2. If equipped, position the rear seat recline strap aside.
3. If equipped, release the retainers and position the seat backrest center cover aside.
Courtesy of FORD MOTOR COMPANY
1. If equipped, remove the screws.
2. If equipped, position the rear seat recline straps aside.
3. If equipped, release the retainers and remove the seat backrest center cover.
Courtesy of FORD MOTOR COMPANY
Position the safety belt through the center backrest upper safety belt guide.

Courtesy of FORD MOTOR COMPANY
1. Release the locking tabs and remove the center backrest safety belt guide cover.
2. Position the safety belt through the center backrest safety belt guide.
Courtesy of FORD MOTOR COMPANY

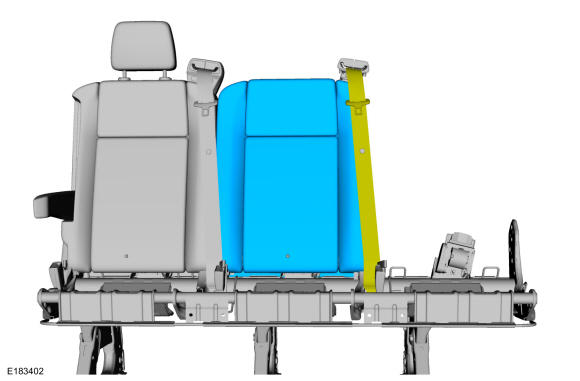

Remove the bolts and the center seat backrest.

Courtesy of FORD MOTOR COMPANY

seat backrest

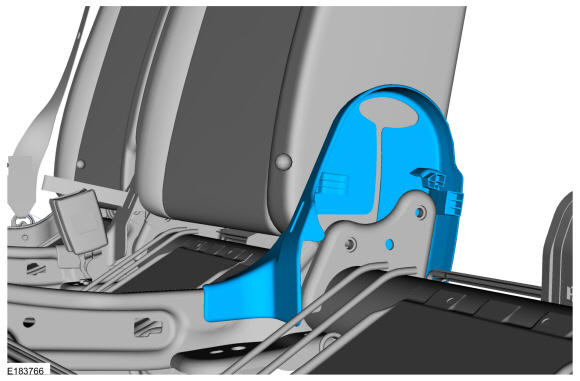

If equipped, remove the seat backrest center cover.

Courtesy of FORD MOTOR COMPANY
Remove the RH three passenger bench seat backrest cover. Refer to: Three Passenger Bench Seat Backrest Cover .
Remove the RH seat backrest foam while positioning the safety belt through the foam opening.

Courtesy of FORD MOTOR COMPANY
Position the safety belt through the RH seat backrest upper safety belt guide.

Courtesy of FORD MOTOR COMPANY
1. Release the locking tabs and remove the RH seat safety belt guide cover.
2. Position the safety belt through the RH seat backrest safety belt guide.
Courtesy of FORD MOTOR COMPANY

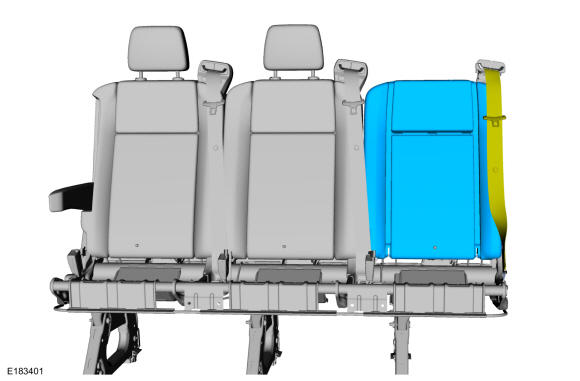

Remove the bolts and the RH seat backrest.

Courtesy of FORD MOTOR COMPANY
