Instrument Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Depower the SRS Refer to: Supplemental Restraint System (SRS) Depowering .

    Vehicles with air conditioning

  2. Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Electric Motor (C0) .
  3. NOTE: Make sure that all openings are sealed.
    NOTE: Only use the specified material to lubricate the seals.

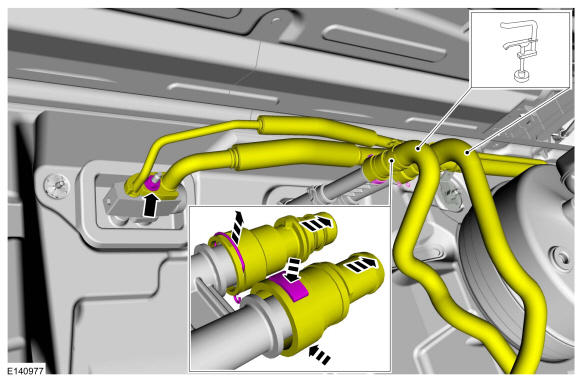

    Remove the nut and remove the HVAC flange. On installation, install and lubricate new O-ring seals. Clamp and remove the heater hoses. Refer to: Specifications

    Use the General Equipment: Hose Clamp(s)

    Torque: 71 lb.in (8 Nm)

    GFD641606Courtesy of FORD MOTOR COMPANY

    Vehicles without air conditioning

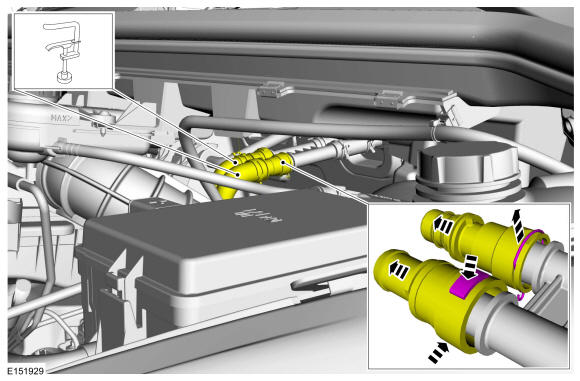

  4. NOTE: Make sure that all openings are sealed.

    Clamp and disconnect the heater hoses. Use the General Equipment: Hose Clamp(s)

    GFD641607Courtesy of FORD MOTOR COMPANY

    All vehicles

  5. Remove the front doors. Refer to: Front Door .
  6. On both sides. Remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .
  7. NOTE: Make sure that the steering column lock is engaged.
    NOTE: Make sure that the road wheels are in the straight ahead position.
    NOTE: Make sure that the steering wheel does not rotate or damage to the clockspring may occur.

    Secure the steering wheel.

    GFD641608Courtesy of FORD MOTOR COMPANY
  8. WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    NOTE: The steering column is designed to absorb energy in a crash and must be handled carefully. The energy-absorbing steering column shaft cannot be subjected to force or impact shocks. Follow the removal procedure instructions carefully to avoid damage.
    NOTE: Make sure that the steering column lock is engaged.
    NOTE: Make sure that the road wheels are in the straight ahead position.
    NOTE: Make sure a new bolt is installed.

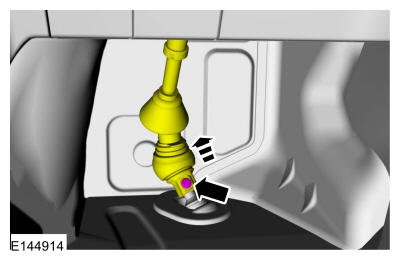

    Remove the steering column shaft pinch bolt.

    Torque: 22 lb.ft (30 Nm)

    GFD641609Courtesy of FORD MOTOR COMPANY

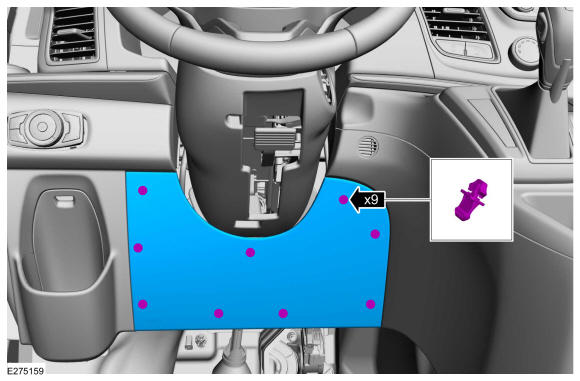

  9. Release the clips and remove the trim panel.
    GFD641610Courtesy of FORD MOTOR COMPANY

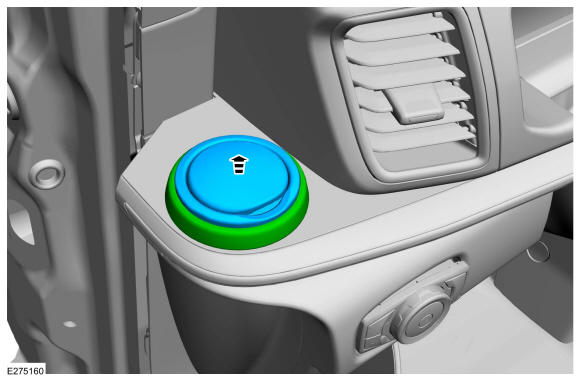

  10. Remove the cup holder assembly.
    GFD641611Courtesy of FORD MOTOR COMPANY

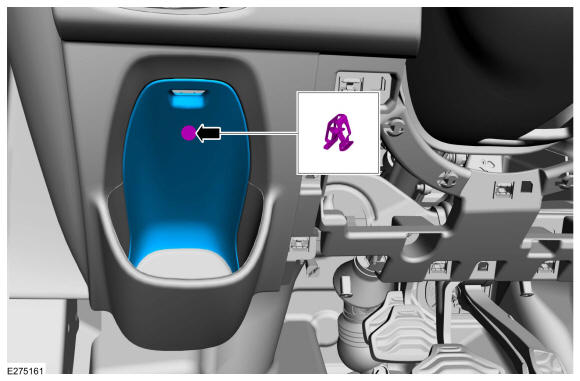

  11. Release the clip and remove the trim panel.
    GFD641612Courtesy of FORD MOTOR COMPANY

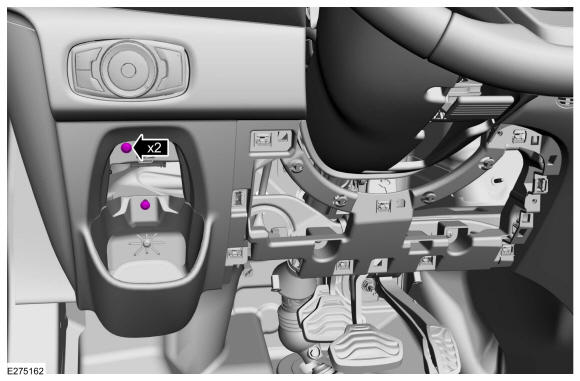

  12. Remove the retainers.
    GFD641613Courtesy of FORD MOTOR COMPANY

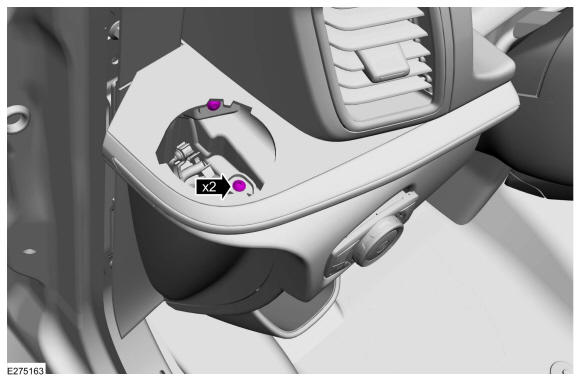

  13. Remove the retainers.
    GFD641614Courtesy of FORD MOTOR COMPANY

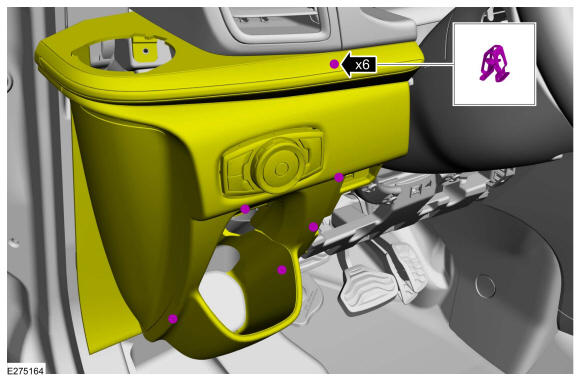

  14. Release the clips and position the LH trim panel to access the electrical connector.
    GFD641615Courtesy of FORD MOTOR COMPANY

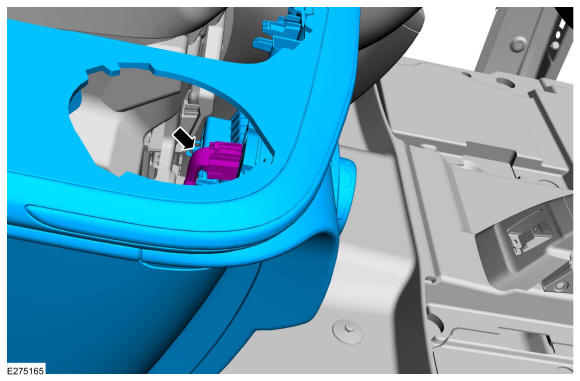

  15. Disconnect the electrical connector and remove the LH trim panel.
    GFD641616Courtesy of FORD MOTOR COMPANY

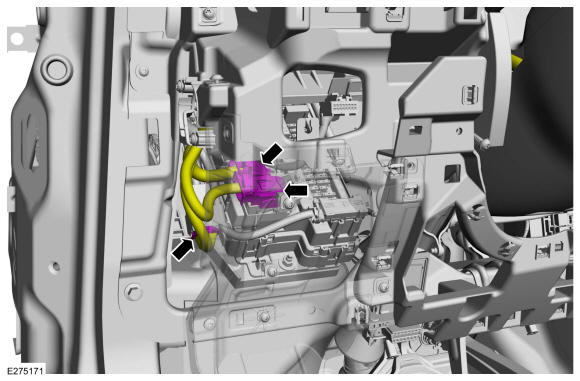

  16. Disconnect the electrical connectors.
    GFD641617Courtesy of FORD MOTOR COMPANY

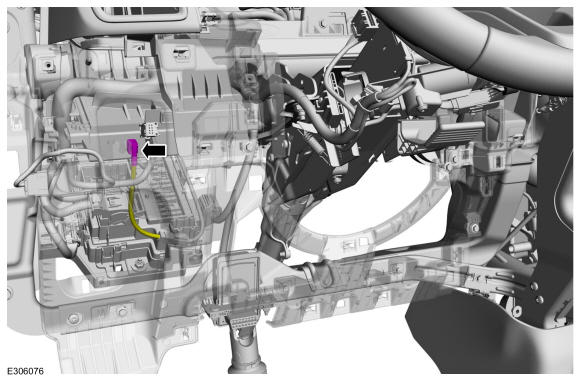

  17. Disconnect the electrical connector.
    GFD641618Courtesy of FORD MOTOR COMPANY

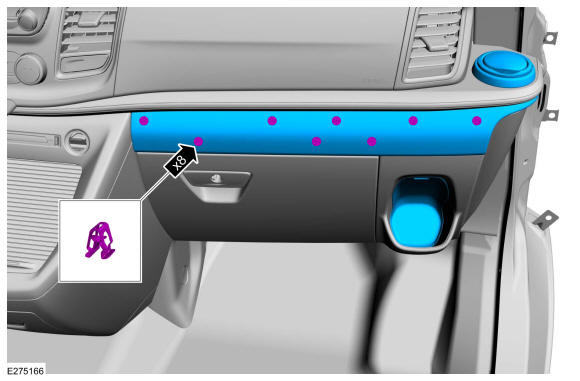

  18. Release the clips and remove the trim panels, remove the cup holder assembly.
    GFD641619Courtesy of FORD MOTOR COMPANY

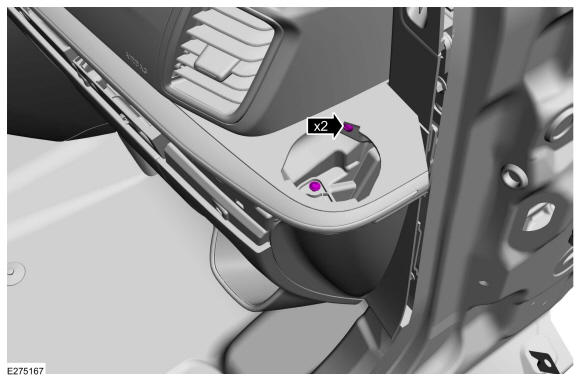

  19. Remove the retainers.
    GFD641620Courtesy of FORD MOTOR COMPANY

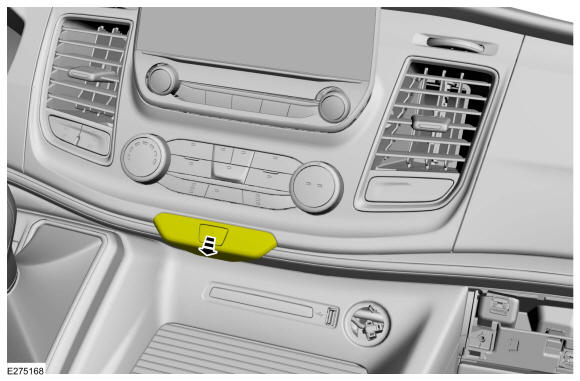

  20. Remove the finish panel.

    • Disconnect the electrical connector.

    GFD641621Courtesy of FORD MOTOR COMPANY

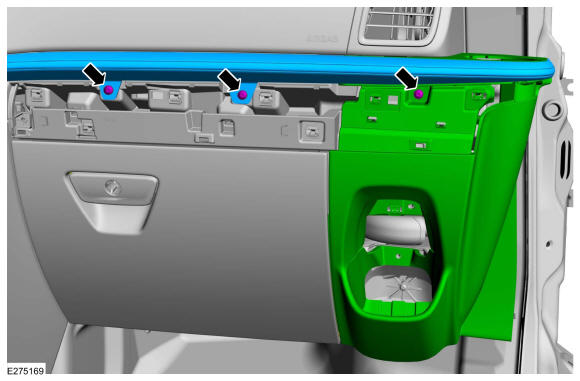

  21. Remove the retainers and the RH trim panels.
    GFD641622Courtesy of FORD MOTOR COMPANY

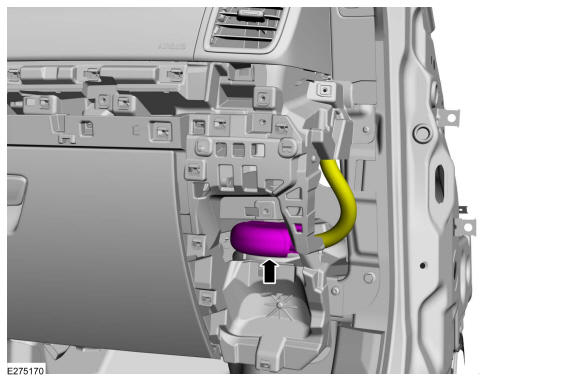

  22. Disconnect the electrical connector.
    GFD641623Courtesy of FORD MOTOR COMPANY

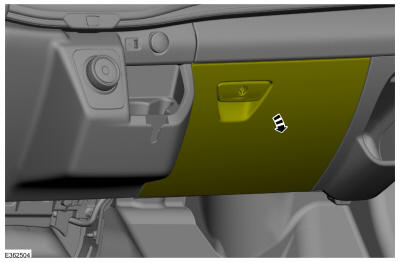

  23. Open the glove compartment.
    GFD641624Courtesy of FORD MOTOR COMPANY

    Battery Electric Vehicles (BEV)

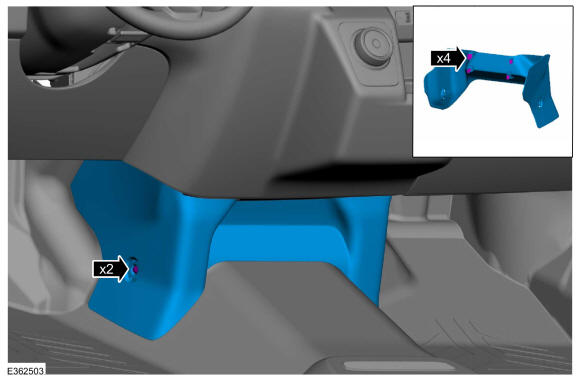

  24. Remove the retainers and the lower trim panel.
    GFD641625Courtesy of FORD MOTOR COMPANY

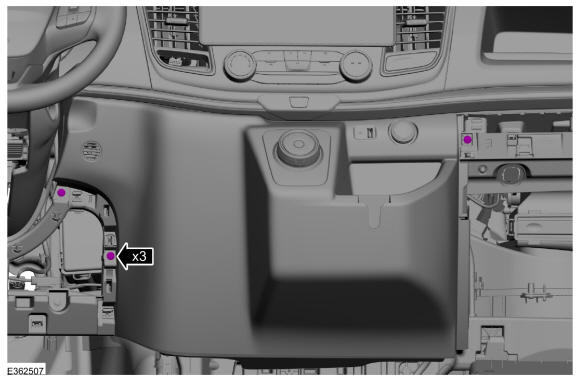

  25. Remove the retainers.
    GFD641626Courtesy of FORD MOTOR COMPANY

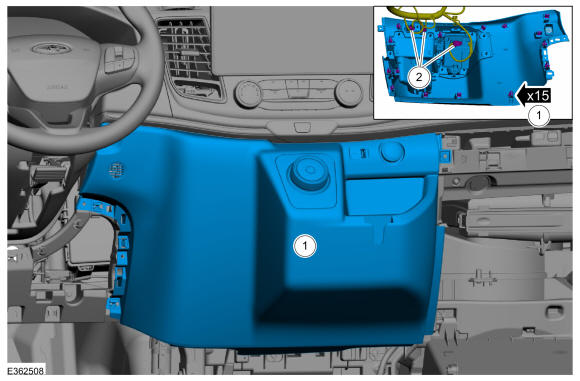

  26. Remove and disconnect center instrument panel trim panel.

    1. Release the retainers and remove the center instrument panel trim panel.
    2. Disconnect the electrical connectors.

    GFD641627Courtesy of FORD MOTOR COMPANY

    All vehicles except Battery Electric Vehicles (BEV)

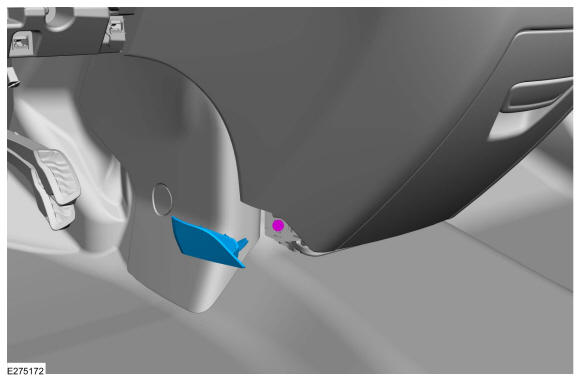

  27. On both sides. Remove the cover and the retainer.
    GFD641628Courtesy of FORD MOTOR COMPANY

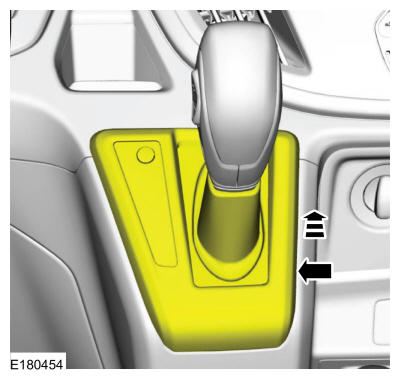

  28. Remove the selector lever trim panel.
    GFD641629Courtesy of FORD MOTOR COMPANY
    NOTE: The foldable cupholder is available as spare part and can be replaced separately, removal of floor console and trim panel is not necessary during the repair.

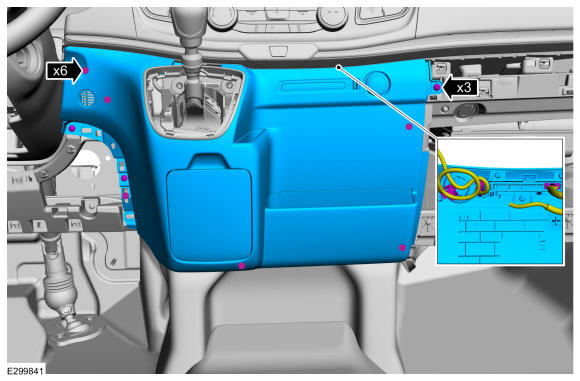

  29. Remove the retainers and the instrument panel center trim panel.

    • Disconnect the electrical connectors.

    GFD641630Courtesy of FORD MOTOR COMPANY

    All vehicles

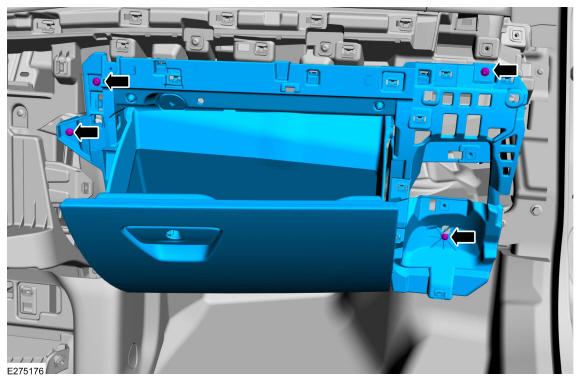

  30. Remove the retainers and the glove compartment close out.
    GFD641631Courtesy of FORD MOTOR COMPANY

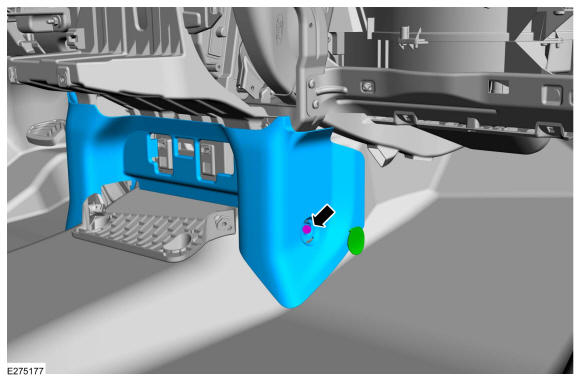

  31. Remove the retainers and the lower trim panel.
    GFD641632Courtesy of FORD MOTOR COMPANY

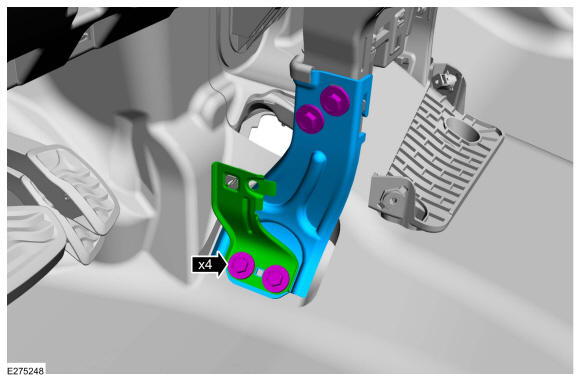

  32. On both sides. Remove the bolts.

    Torque: 159 lb.in (18 Nm)

    GFD641633Courtesy of FORD MOTOR COMPANY

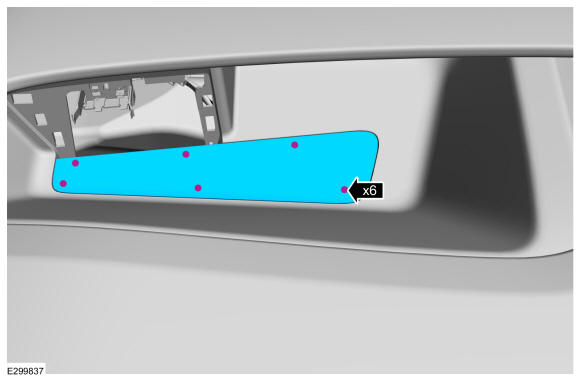

  33. Release the clips and remove the trim panel.
    GFD641634Courtesy of FORD MOTOR COMPANY

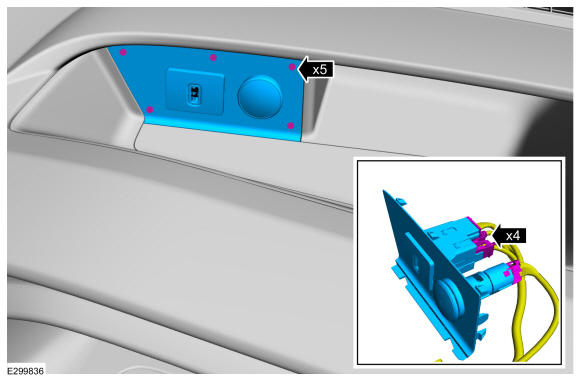

  34. Remove the trim panel.

    • NOTE: If equipped.

      Disconnect the electrical connectors.

    GFD641635Courtesy of FORD MOTOR COMPANY

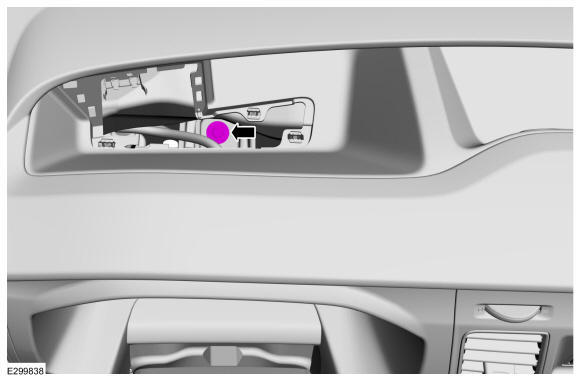

  35. Remove the bolt.

    Torque: 124 lb.in (14 Nm)

    GFD641636Courtesy of FORD MOTOR COMPANY

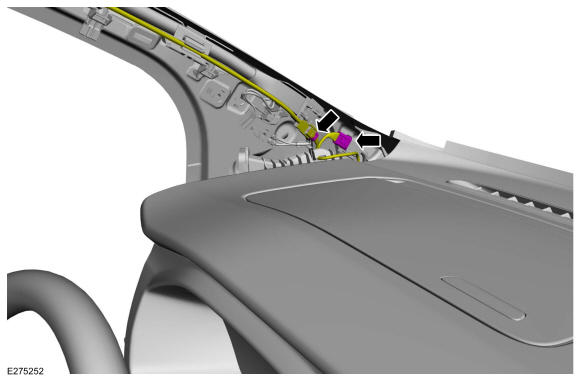

  36. Disconnect the electrical connectors.
    GFD641637Courtesy of FORD MOTOR COMPANY

    Vehicles with manual transmission

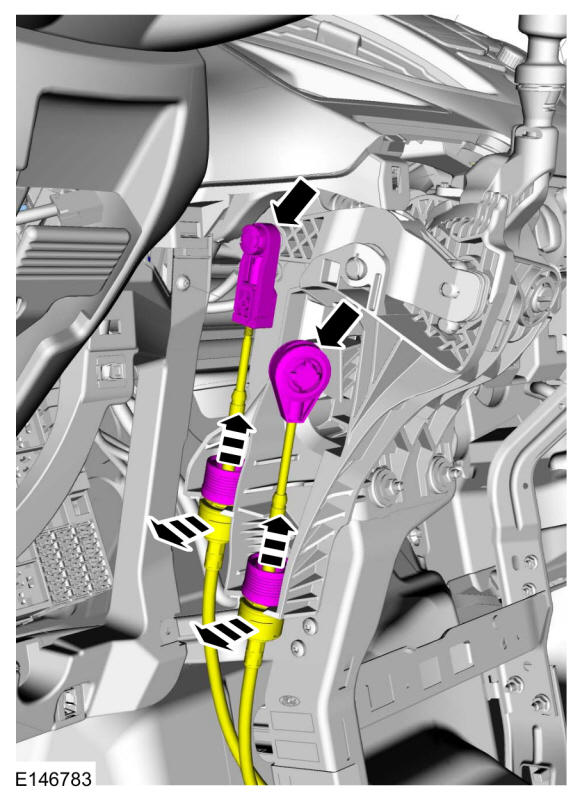

  37. Detach and position aside the shift cables.
    GFD641638Courtesy of FORD MOTOR COMPANY

    Vehicles with automatic transmission

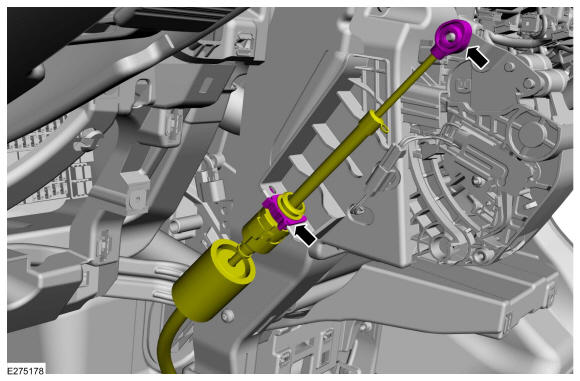

  38. Detach and position aside the shift cable.
    GFD641639Courtesy of FORD MOTOR COMPANY

    All vehicles

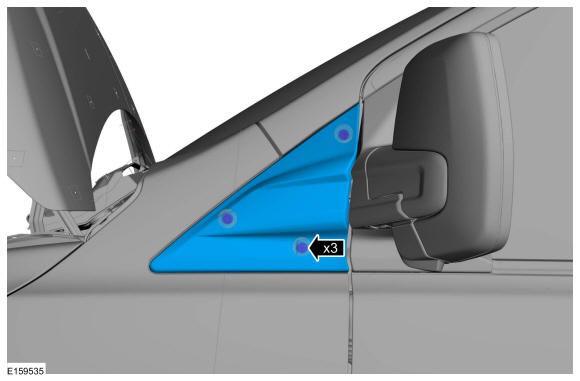

  39. On both sides. Release the clips and remove the trim cover.
    GFD641640Courtesy of FORD MOTOR COMPANY

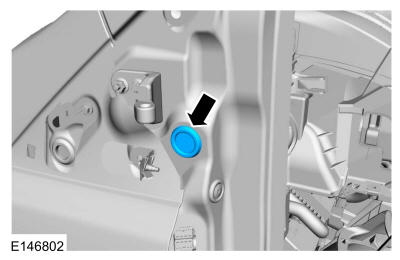

  40. On both sides. Remove the plug.
    GFD641641Courtesy of FORD MOTOR COMPANY

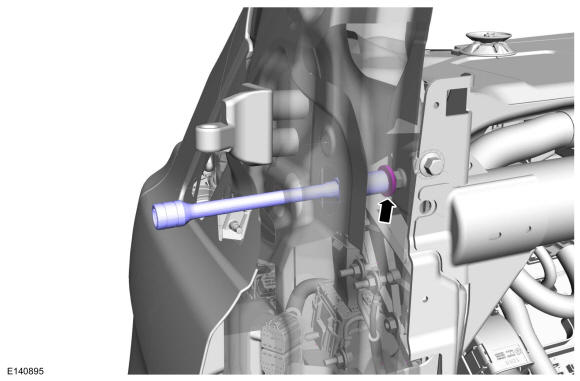

  41. On both sides. Remove the bolt.

    Torque: 124 lb.in (14 Nm)

    GFD641642Courtesy of FORD MOTOR COMPANY

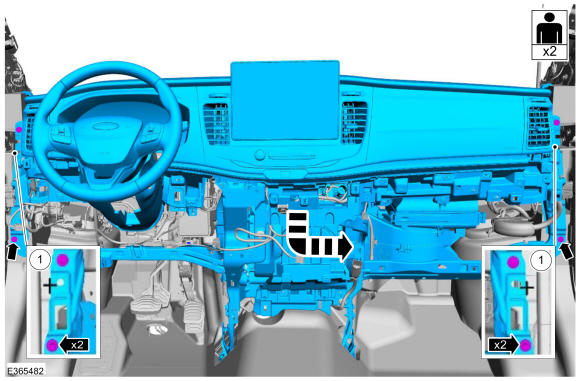

  42. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Remove the instrument panel through the door opening.

    1. Remove the bolts.

      Torque: 22 lb.ft (30 Nm)

    GFD641643Courtesy of FORD MOTOR COMPANY

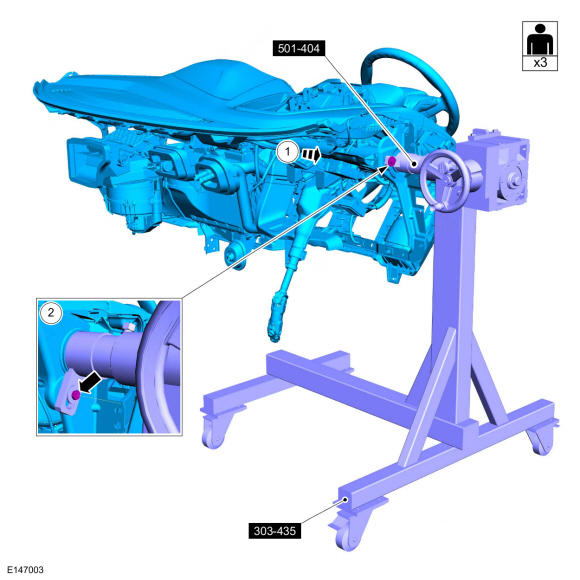

    LHD

    1. Use Special Service Tool: 303-435 Mounting Stand., 501-404 Holding Tool, Instrument Panel.
    2. Torque

      : 89 lb.in (10 Nm)

    GFD641644Courtesy of FORD MOTOR COMPANY

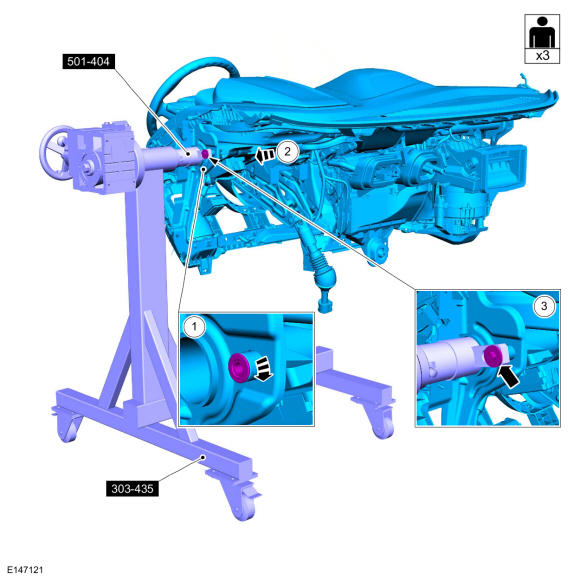

    RHD

    1. Remove the tolerance absorber.
    2. Use Special Service Tool: 303-435 Mounting Stand., 501-404 Holding Tool, Instrument Panel.
    3. Torque

      : 89 lb.in (10 Nm)

GFD641645Courtesy of FORD MOTOR COMPANY
