In-Vehicle Crossbeam: Removal

NOTE: Removal steps in this procedure may contain installation details.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

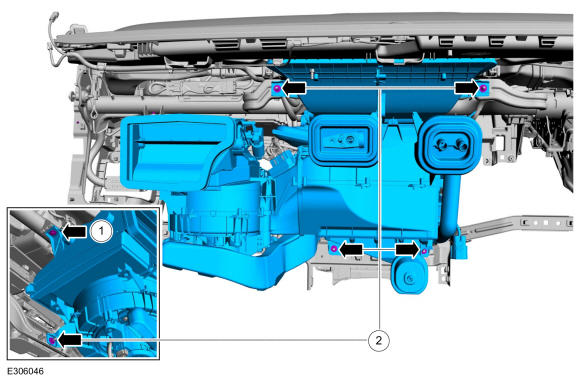

Torque:
1: 53 lb.in (6 Nm)

2: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

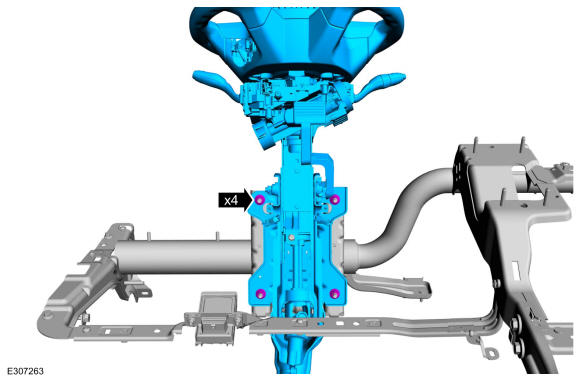

Torque
: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

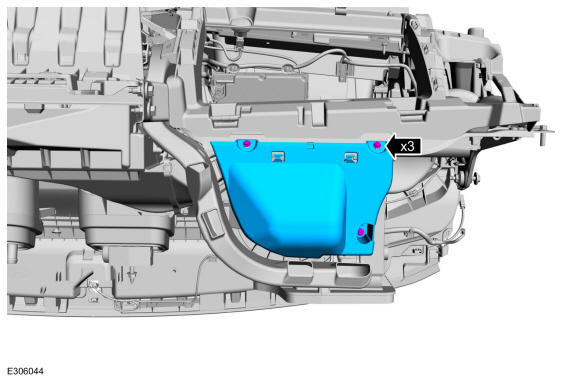

Torque
: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
