Glove Compartment: Removal

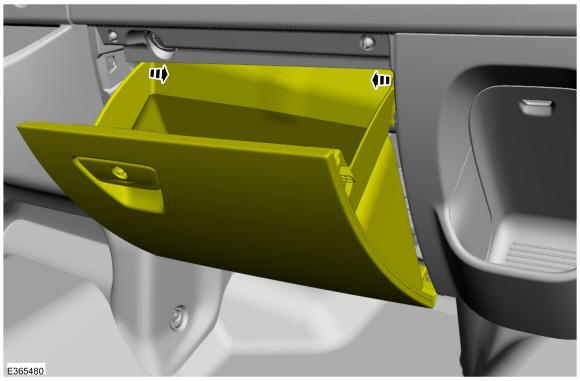

  1. Depressed the stop tabs and fully lower the glove compartment.
    GFD641602Courtesy of FORD MOTOR COMPANY

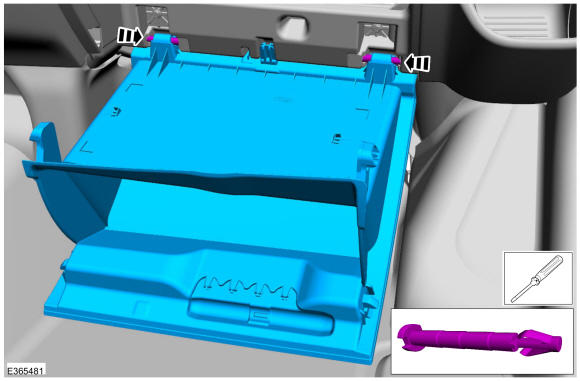

  2. Pry the hinge pins inward and remove the glove compartment.
GFD641603Courtesy of FORD MOTOR COMPANY
