Side Parking Aid Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.

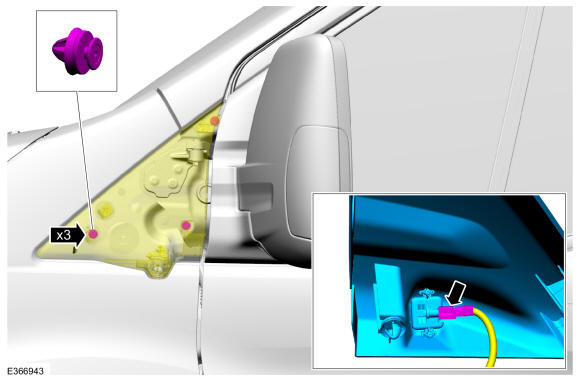

  1. Release the trim pins, position the upper fender trim panel, disconnect the electrical connector and remove the upper fender trim panel.
    GFD640140Courtesy of FORD MOTOR COMPANY

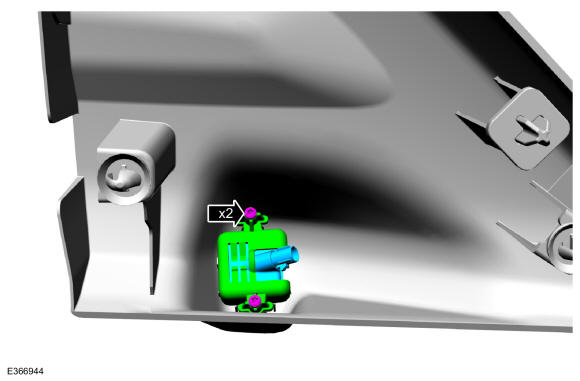

  2. Remove the screws, the bracket and the side view camera.
GFD640141Courtesy of FORD MOTOR COMPANY
