Front Parking Aid Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

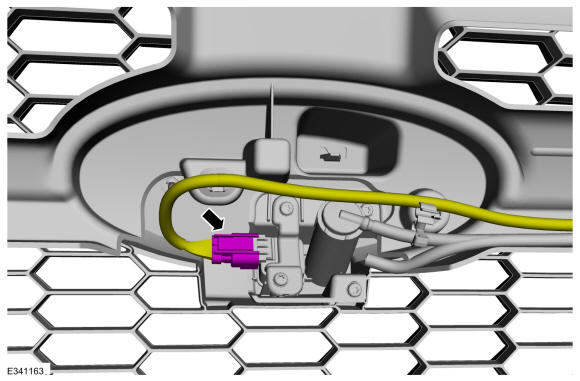

  2. Disconnect the electrical connector.
    GFD640127Courtesy of FORD MOTOR COMPANY

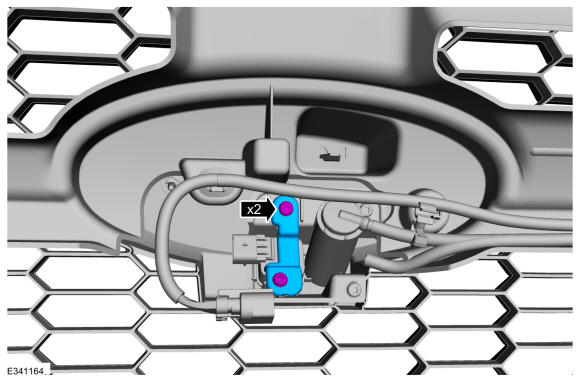

  3. Remove the screws and the front parking aid bracket.
    GFD640128Courtesy of FORD MOTOR COMPANY

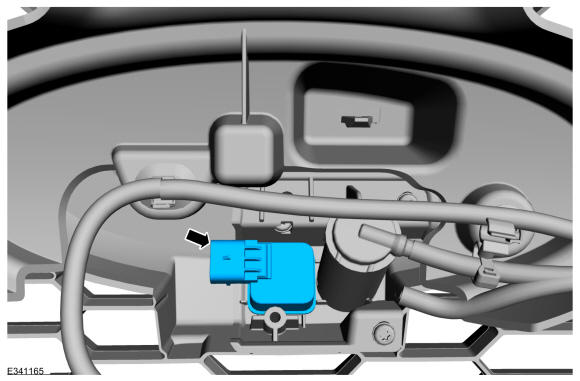

  4. Remove the front parking aid camera.
GFD640129Courtesy of FORD MOTOR COMPANY
