Parking Aid - Component Location

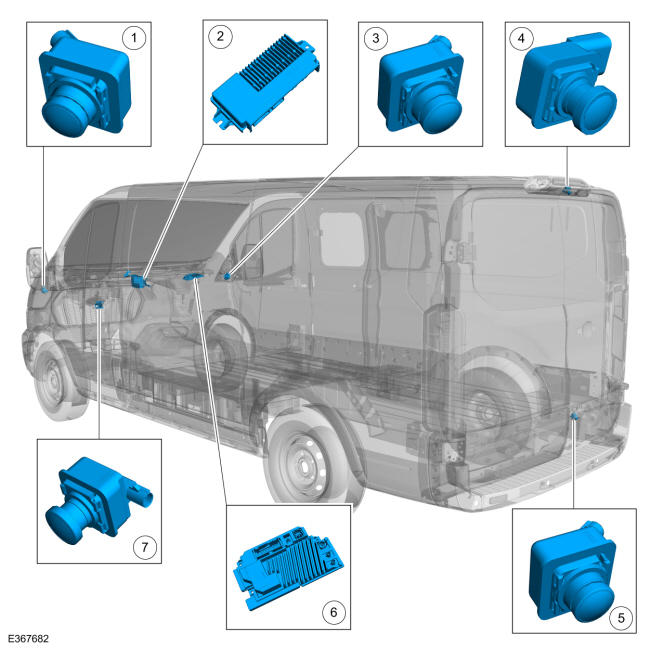

Component Location - Parking Aid Camera

GFD640124Courtesy of FORD MOTOR COMPANY
Item Description
1 Mirror camera - Left
2 IPMB
3 Mirror camera - Right
4 Center high mounted stop lamp camera
5 Rear camera
6 APIM
7 Front camera
