Image Processing Module B (IPMB) - Vehicles Without: Parking Aid Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the IPMB following the onscreen instructions.

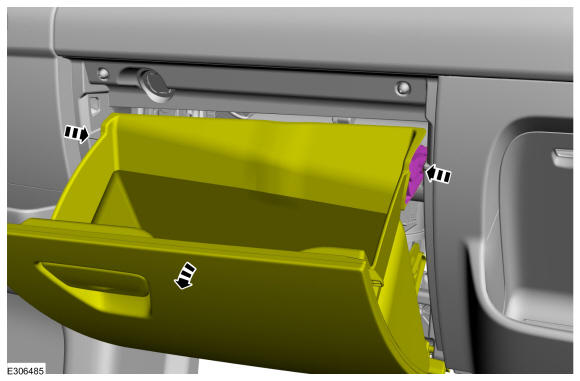

Press the stop tabs inward and fully lower the glove compartment.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connectors, remove the nuts and the IPMB and bracket as an assembly.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the screws and the IPMB.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
