Engine Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.
NOTE:

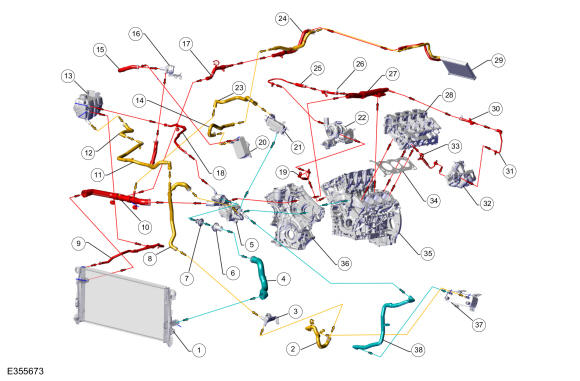

Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38° C (100° F). Red arrows indicate a temperature over 90° C (194° F), Orange arrows indicate a temperature of approximately 90° C (194° F), Blue arrows indicate a temperature below 90° C (194° F).
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Transmission fluid heater coolant control valve inlet hose |
| 3 | Transmission fluid heater coolant control valve |
| 4 | Lower radiator hose |
| 5 | Coolant pump |
| 6 | Coolant inlet connector |
| 7 | Thermostat |
| 8 | Transmission fluid heater coolant control valve outlet hose |
| 9 | Radiator-to-degas bottle hose |
| 10 | Upper radiator hose |
| 11 | Coolant outlet hose |
| 12 | Degas bottle hose |
| 13 | Degas bottle |
| 14 | Engine oil cooler inlet hose |
| 15 | Engine oil cooler outlet hose |
| 16 | Cabin heater coolant pump |
| 17 | Heater inlet hose |
| 18 | Air aspirator hose |
| 19 | Turbocharger RH inlet hose |
| 20 | Engine oil cooler |
| 21 | EGR cooler |
| 22 | Turbocharger RH |
| 23 | EGR cooler outlet hose |
| 24 | Heater core hose assembly |
| 25 | Turbocharger RH outlet hose |
| 26 | Cylinder head to coolant outlet connector hose RH |
| 27 | Coolant outlet connector |
| 28 | Cylinder head LH |
| 29 | Heater core |
| 30 | Cylinder head to coolant outlet connector hose LH |
| 31 | Turbocharger LH outlet hose |
| 32 | Turbocharger LH |
| 33 | Turbocharger LH inlet hose |
| 34 | Cylinder head LH gasket |
| 35 | Cylinder block |
| 36 | Engine front cover |
| 37 | Transmission oil cooler |
| 38 | Transmission oil cooler inlet hose |
