Transfer Case Input Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transfer case. Refer to: Transfer Case .

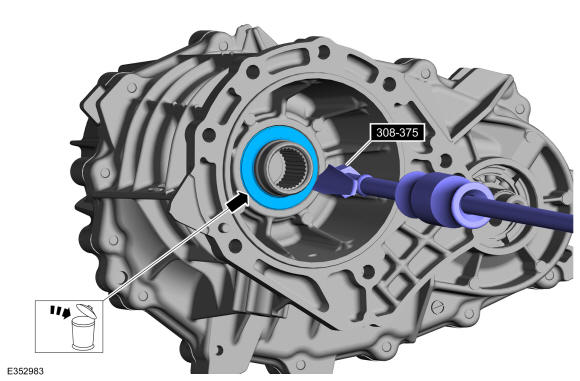

  2. Remove the input shaft seal. Use Special Service Tool: 308-375 Remover, Input Shaft Seal., 100-001 (T50T-100-A) Slide Hammer.
GFD626605Courtesy of FORD MOTOR COMPANY
