Transfer Case Front Output Shaft Seal: Installation
WARNING: This page is about a different variant/trim than selected.

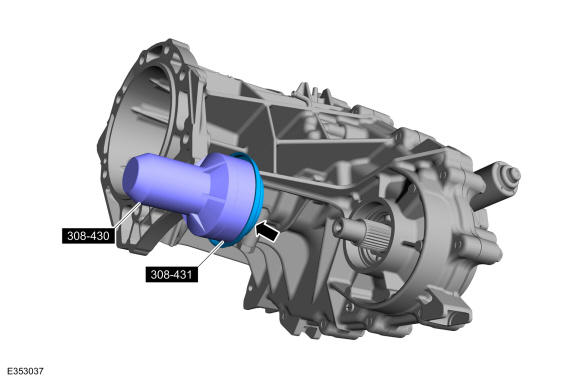

- Using the special tool, install the front output shaft seal. Use Special Service Tool: 308-430 Installer, PTO Drive Gear Outer Oil Seal., 308-431 Installer, Halfshaft Oil Seal.
-
NOTE: Make sure output flange and output shaft are phased correctly using previously applied mark.

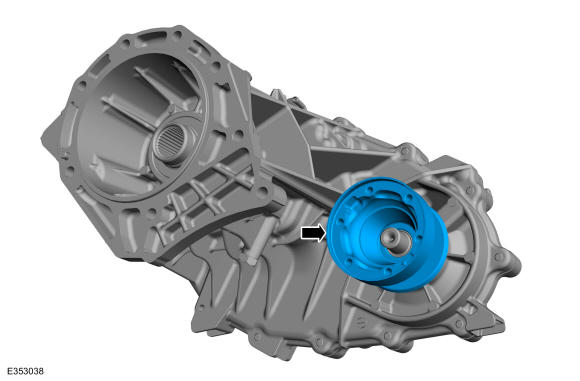

Install the front output flange.

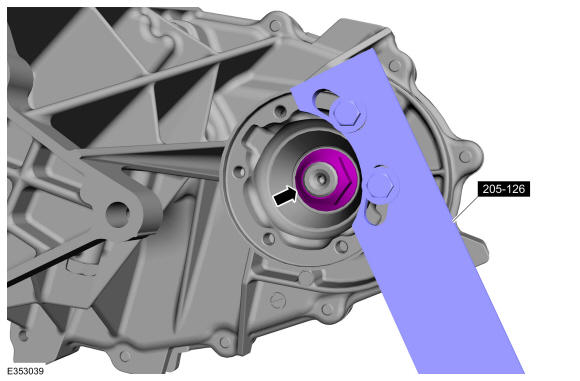

- Install the new output shaft flange nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
Torque: 203 lb.ft (275 Nm)
- Install the Front driveshaft. Refer to: Front Driveshaft .
- If equipped. Install the skid plate bolts and the skid plate.
Torque: 22 lb.ft (30 Nm)
- Refill the transfer case. Refer to: Transfer Case Draining and Filling .
